Stand Driving Electric Tow Tractor Powerful Drive Motor 2 Tons Rated Traction Weight
Price:
USD 4670 per set
MOQ:
1 set
Delivery Time:
25 - 30 days
Brand:
REACH
Product Description

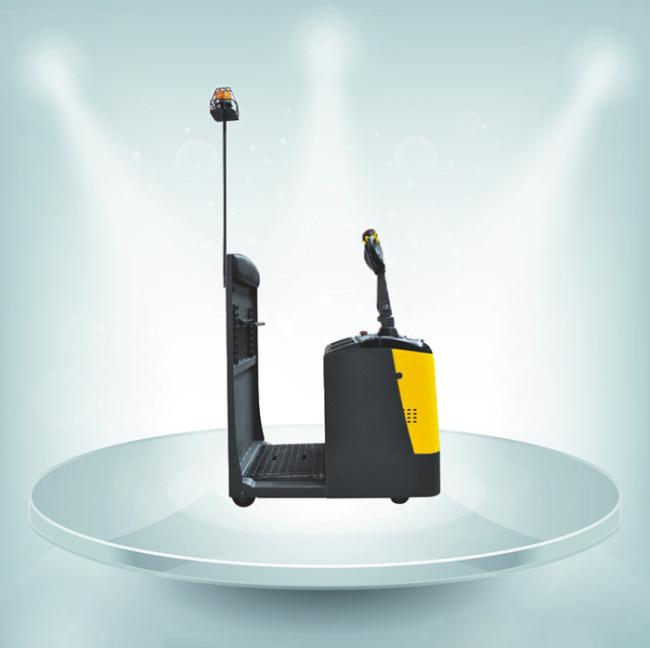

Stand driving 2tons electric tow tractor with powerful drive motor
Quick Details:
Drive type: electric
Load capacity: 2000kg
Overall length: 1273mm
Overall width: 773mm
Aisle width: 1473mm
Min. turning radius: 1070mm
Travel speed: 7/7.1km/h
Battery: 24V210AH
Advantages:
-
Smoothly steering system is easy operation, flexibly and more safely.
-
With Powerful drive motor, max. grade ability can reach 8% with full towing capacity 2000kg.
-
Standing driving, floor is No-slip with anti-vibration function, back rest with reversible cushions, reduce fatigue, back cushion height can be adjustable according to the driver’s height.
-
Deadman brake service (The automatic power-off function works when the driver leaves the truck).
-
Stepless speed control.
-
With warning light.
-
Side way battery.
-
Built-in charger.
Also have 2000kg, 3000kg, 4500kg capacity can choose.

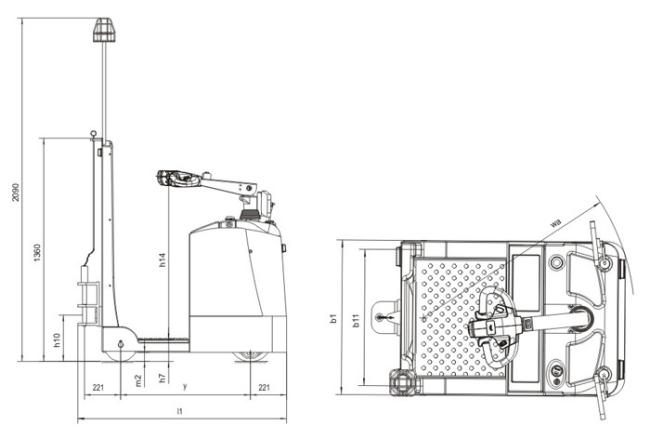

| SPECIFICATIONS | ||
| Model | QDD20H | |
| Drive type | electric | |
| Operate type | standing | |
| Load capacity | kg/lbs | 2000/4409 |
| Max. rated tractive force | N | 2000 |
| Drawbar center height | mm/inch | 280/11 |
| Axle loading, laden front/rear | kg/lbs | 360/160(794/353) |
| Axle loading, unladen front/rear | kg/lbs | 380/140(838/309) |
| Tyre size, front | mm/inch | 250*70/10*2.75 |
| Tyre size, rear | mm/inch | 200*50/8*2 |
| Height of tiller in drive position min./max. | mm/inch | 1010/1350(39.76/53.1) |
| Overall length | mm/inch | 1273/50 |
| Overall width | mm/inch | 773/30.4 |
| Aisle width | mm/inch | 1473/58 |
| Turning radius | mm/inch | 1070/42.1 |
| Travel speed, laden/unladen | km/h | 7/7.1 |
| Battery | V/Ah | 24/210 |
| Service weight | kg/lbs | 520/1146 |
