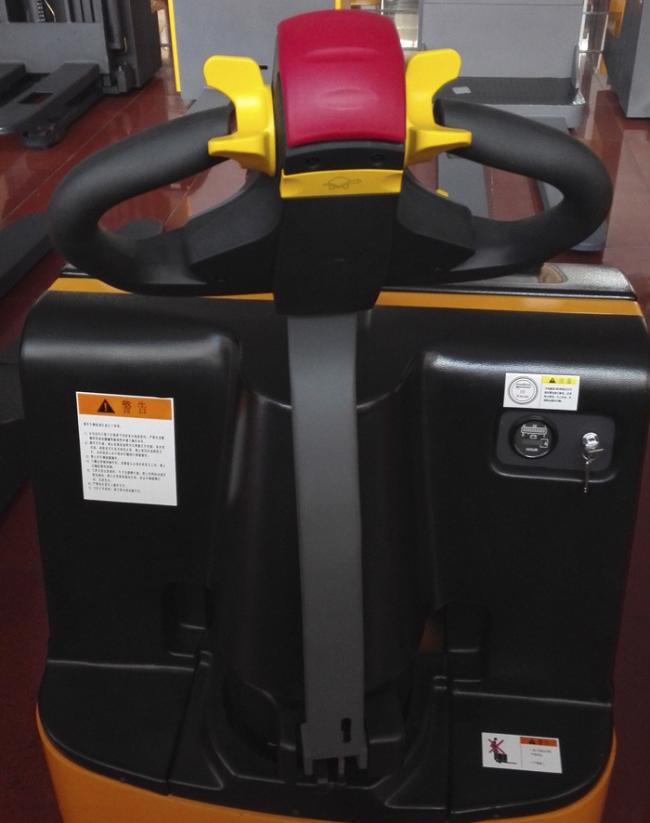

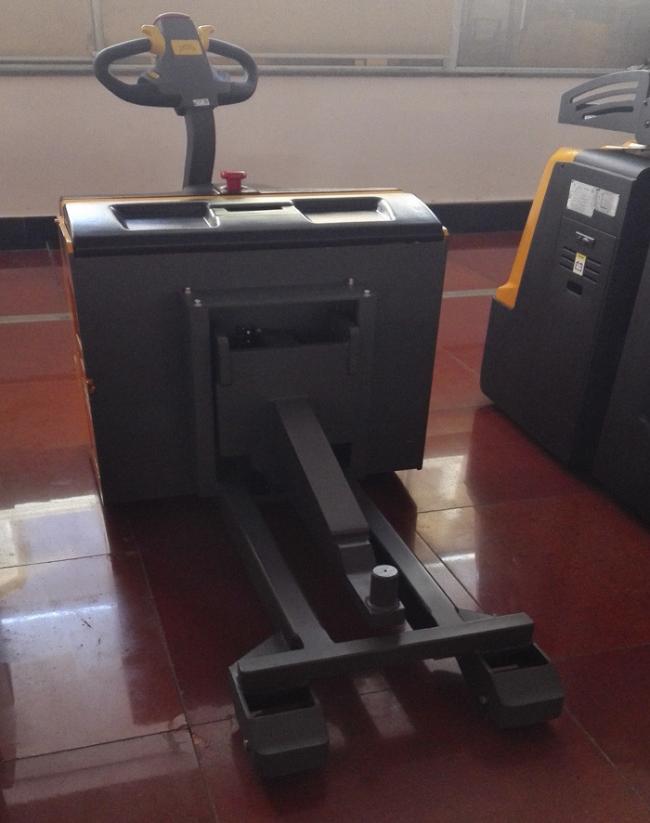

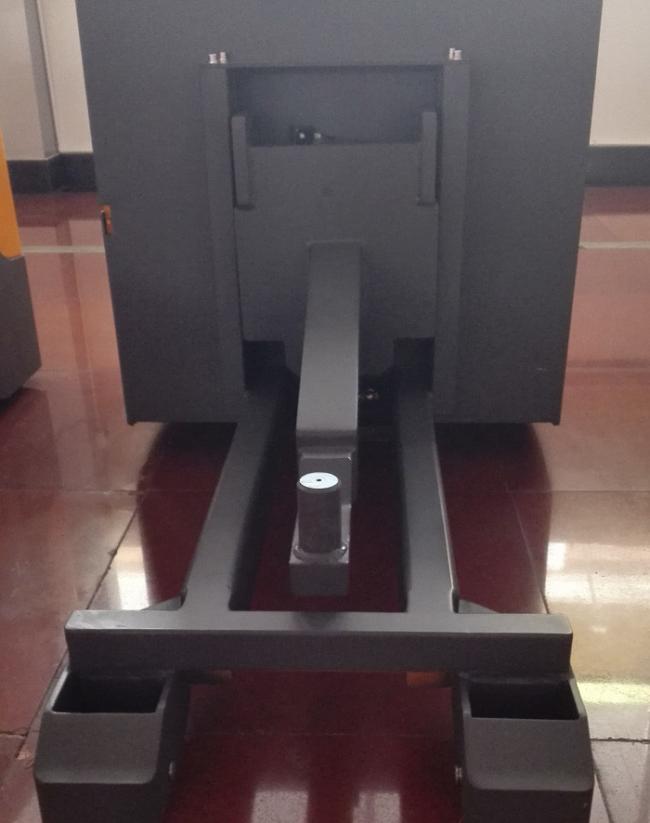

Pedestrian Electric Tow Truck Walking Type Emergency Braking For Textile Factory
Price:
USD 4670 per set
MOQ:
1 set
Delivery Time:
25 - 30 days
Brand:
REACH
Product Description
2500kg walking type electric tow tractor special for textile factory
Quick Details:
Load capacity: 2500kg
Max. rated tractive force: 750N
Drawbar pull min/max height: 217/327mm
Travel speed, unladen/laden: 5/4.5km/h
Turning radius: 1515mm
Battery: 24V165AH
Advantages:
-
Walkie type tow tractor.
-
Special for textile factory.
-
Stepless speed regulation acceleration system.
-
Emergency braking function.
-
Built in charger.
-
Running brake and parking brake with big torque electromagnetic brake.

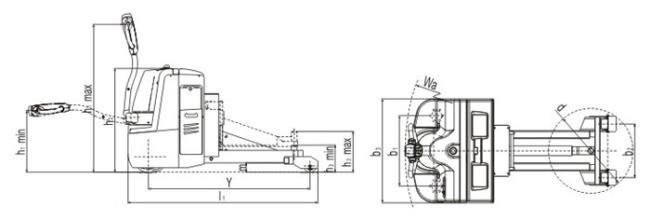

| SPECIFICATIONS | ||
| Model | QDD25W | |
| Drive type | battery | |
| Operate type | pedestrian | |
| Load capacity | kg | 2500 |
| Max. rated tractive force | N | 750 |
| Tyre size, front | mm | 250*70 |
| Tyre size, rear | mm | 98*82 |
| Height of tiller in drive position min./max. | mm | 495/1185 |
| Overall length | mm | 1532 |
| Overall width | mm | 775 |
| Overall height | mm | 833 |
| Drawbar pull min./max. height | mm | 217/327 |
| Turning radius | mm | 1515 |
| Minimum turning radius | mm | 632 |
| Travel speed, laden/unladen | km/h | 4.5/5 |
| Battery | V/Ah | 24/165 |
| Service weight | kg | 580 |
