Electric 10 Ton Explosion Proof Forklift With Innovated Tractor 2485mm Overall Length
Price:
Negotiable
MOQ:
1 set
Delivery Time:
25 - 30 days
Brand:
REACH
Product Description
Innovated tractor explosion proof forklift with big capacity 10000kg
Quick Details:
Rated traction weight: 10000kg
Drive type: Electric
Operation type: Seat
Overall length: 2485mm
Overall width: 1160mm
Overall height: 1480mm
Travel speed, laden/unladen: 6.5/12km/h
Max. gradeability, laden/unladen: 6/15%
Battery: 48V540AH

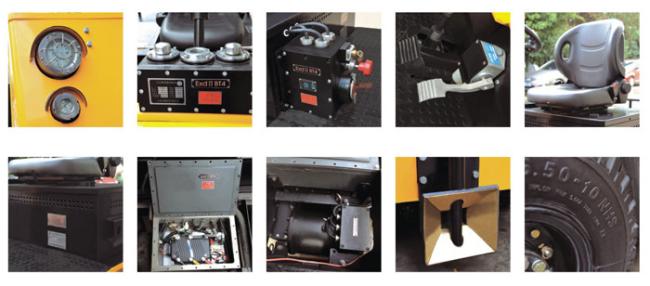

Advantages:
-
Explosion-proof special power device
-
Special sealed battery
-
Explosion-proof special Cable connection
-
Explosion-proof AC Frequency Oil Pump motor
-
Explosion-proof AC Frequency Traction motor
-
Explosion-proof Controller of Industrial trucks
-
Explosion-proof Operating box of Industrial trucks
-
Explosion-proof electric horn of Industrial trucks
-
Explosion-proof Accelerator box of Industrial trucks
-
Explosion-proof lights of Industrial trucks
-
Explosion-proof Signal lamp of Industrial trucks
-
Explosion-proof Travelling Switch (two)

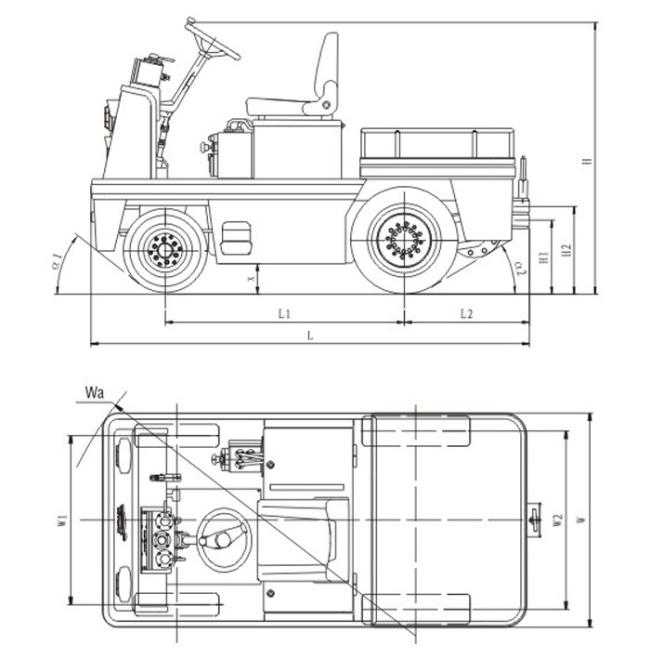

| SPECIFICATIONS | ||
| Model | QSD100EX | |
| Drive type | Electric | |
| Operation type | Seat | |
| Load capacity | kg | 10000 |
| Rated traction (60 minutes rated) | N/kg | 2500/250 |
| Max. traction (5 minutes rated) | N/kg | 10000/1000 |
| Drawbar center height | mm | 320/400 |
| Axle loading, front | kg | 750 |
| Axle loading, rear | kg | 1440 |
| Tyre size, front | solid rubber | 5.00-8-10PR Ex |
| Tyre size, rear | solid rubber | 6.50-10-12PR Ex |
| Wheelbase | mm | 1320 |
| Rear hanging distance | mm | 600 |
| Tread, front | mm | 920 |
| Tread, rear | mm | 970 |
| Seat height | mm | 1050 |
| Overall length | mm | 2485 |
| Overall width | mm | 1160 |
| Overall height | mm | 1480 |
| Approach angle α 1 | ≥38° | |
| Departure angle α 2 | ≥30° | |
| Min. ground height | mm | 138 |
| Min. turning radius | mm | 2200 |
| Travel speed, laden/unladen | km/h | 6.5/12 |
| Max. gradeability, laden/unladen | % | 6/15 |
| Brake | Mechanical, Hydraulic | |
| Battery | V/Ah | 48/540 |
| Travel control | Microcomputer mosfet | |
| Average noise | dB(A) | 68 |
| Traction bolt | Traction bolt | |
| Service weight | kg | 2190 |
