Seated Powered Explosion Proof Forklift 600mm Reach Distance For Ammunition Depots
Price:
Negotiable
MOQ:
1 set
Delivery Time:
25 - 30 days
Brand:
REACH
Product Description
2 ton AC electric powered explosion proof forklift 5000mm forks with brass
Quick Details:
Rated load: 2000kg
Drive type: Electric
Operation type: Seated
Max. lifting height: 5000mm
Free lift: 1700mm
Reach distance: 600mm
Travel speed, laden/unladen: 8/8.3km/h
Max. gradeability, laden/unladen: 10/12%
Battery: 48V510AH
Advantages:
Our innovated Explosion-proof AC powered Reach Truck CQD20Ex, with AC motor, available with capacity 2000kg.
Mainly used in petroleum, military, paper, medicine, ammunition depots and dangerous goods warehouses.
Pneumatic front and rear tyres.
Special explosion-proof sealed batteries.
Explosion-proof special Cable connection with interlock.
Explosion-proof work lights and turning lights on both side.
Explosion-proof electric horn.

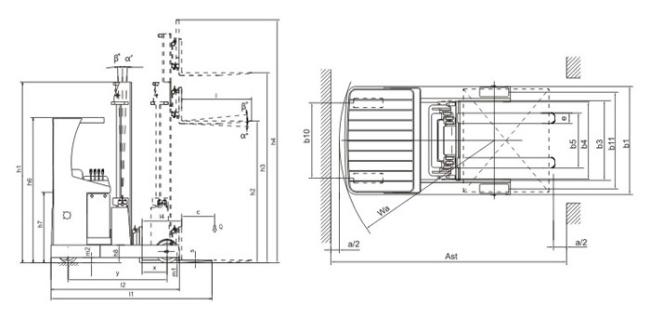

| SPECIFICATIONS | ||
| Model | CQD20Ex | |
| Power | electric | |
| Operation type | seated | |
| Capacity/rated load | kg | 2000 |
| Lift height | mm | 5000 |
| Load center distance | mm | 500 |
| Load distance, centre of drive axle to fork | mm | 380 |
| Wheelbase | mm | 1466 |
| Axle loading, unladen front/rear | kg | 2510/1410 |
| Axle loading, fork advanced, laden front/rear | kg | 955/4965 |
| Axle loading, fork retracted, laden front/rear | kg | 2354/3566 |
| Tyres type | polyurethane | |
| Drive wheel | mm | 406*152 |
| Fork wheel | mm | 406*152 |
| Tread, front | mm | ~ |
| Tread, rear | mm | 1180 |
| Tilt of mast/fork carriage forward/backward | Grad | 2,2(mast) |
| Height, mast lowered | mm | 2240 |
| Free lift | mm | 1700 |
| Height, mast extended | mm | 5800 |
| Height of overhead guard(cabin) | mm | 2200 |
| Seat height/stand height | mm | 1068 |
| Height of crura | mm | 270 |
| Overall length | mm | 2440 |
| Length to face of forks | mm | 1950 |
| Overall width | mm | 1378 |
| Fork dimensions | mm | 50/130/1070 |
| Fork carriage width | mm | 928 |
| Distance between fork-arms | mm | 680 |
| Distance between support arms/loading surfaces | mm | 900 |
| Reach distance | mm | 600 |
| Ground clearance, laden, below mast | mm | 90 |
| Ground clearance, centre of wheelbase | mm | 80 |
| Aisle width for pallets 1000*1200 crossways | mm | 2880 |
| Aisle width for pallets 800*1200 lengthways | mm | 2930 |
| Turning radius | mm | 1820 |
| Travel speed, laden/unladen | km/h | 8/8.3 |
| Lift speed, laden/unladen | mm/s | 190/200 |
| Lowering speed, laden/unladen | mm/s | 500/400 |
| Reaching speed, laden/unladen | mm/s | 100/100 |
| Max. gradeability, laden/unladen | % | 10/12 |
| Acceleration time, laden/unladen | s | 4.8/4.3 |
| Service brake | hydraulic | |
| Battery | V/Ah | 48/510 |
| Type of drive control | AC | |
| Sound level at the driver's ear acc. to DIN 12053 | dB(A) | 70 |
| Service weight | kg | 3920 |
