2500kg Four Wheel Forklift Gas Powered With Three Stage Mast Lift Height 6m
Price:
Negotiable
MOQ:
1 set
Delivery Time:
25 - 30 days
Brand:
REACH
Product Description

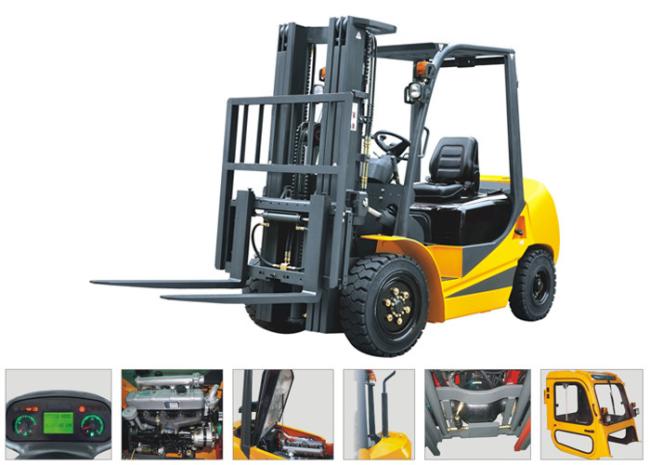

Gas powered four wheel forklift with three stage mast lift height 6m
Quick Details:
Model: Gas powered four wheel forklift FG25
Capacity: 2500kg
Lift height: 3000 ~ 6000mm
Power: Gasoline
Tyres type: pneumatic/solid
Fork dimensions: 40/120/1070mm
Aisle width for pallets: 3790/3590mm
Turning radius: 2190mm
Travel speed: 18km/h
Advantages:
Gas four wheel forklift truck with wide view mast.
Gas four wheel forklift truck with best visibility.
Gas powered four wheel forklift truck with cowl mounted hydraulic lever offers large operation space.
Gas powered four wheel forklift truck electric F/R control lever with natural starting system.
Gas powered four wheel forklift truck low height access step with wide non slip plate for easy entry and exit.
Gas powered four wheel forklift with optional of semi or full suspension seat.
| SPECIFICATIONS | ||
| Model | FG25 | |
| Power | Gasoline | |
| Operation type | seat | |
| Load capacity | kg | 2500 |
| Load center distance | mm | 500 |
| Max. lifting height | mm | 3000-6000 |
| Load distance, centre of drive axle to fork | mm | 485 |
| Wheelbase | mm | 1700 |
| Axle loading, laden front/rear | kg | 5702/778 |
| Axle loading, unladen front/rear | kg | 1592/2388 |
| Tyres type | pneumatic/solid | |
| Tyre size, front | mm | 676*190/657*172 |
| Tyre size, rear | mm | 540*160/527*150 |
| Tread, front | mm | 970 |
| Tread, rear | mm | 970 |
| Tilt of mast/fork carriage forward/backward | Grad | 6°-12° |
| Height, mast lowered | mm | 2040-3117 |
| Height, mast extended | mm | 4067-7067 |
| Height of overhead guard(cabin) | mm | 2080 |
| Seat height/stand height | mm | 1052 |
| Overall length | mm | 3650 |
| Length to face of forks | mm | 2580 |
| Overall width | mm | 1150 |
| Fork dimensions | mm | 40/120/1070 |
| Fork carriage width | mm | 1160 |
| Ground clearance, laden, below mast | mm | 125 |
| Ground clearance, centre of wheelbase | mm | 135 |
| Aisle width for pallets 1000*1200 crossways | mm | 3790 |
| Aisle width for pallets 800*1200 lengthways | mm | 3590 |
| Turning radius | mm | 2190 |
| Internal turning radius | mm | 505 |
| Travel speed, laden/unladen | km/h | 0-18 |
| Lift speed, laden/unladen | mm/s | 460 |
| Lowering speed, laden/unladen | mm/s | ＜600 |
| Max. drawbar pull, laden/unladen | N | 15120 |
| Max. gradeability, laden/unladen | % | 20/27 |
| Acceleration time, laden/unladen | s | 3/4 |
| Engine type | K21/K25/491 | |
| Engine power | kw | 31/37.4/41 |
| Rated speed | R/Min | 2300/2300/2500 |
| Type of drive control | mechanical/hydraulic | |
| Operating pressure for attachments | Mpa | 16.5 |
| Sound level at the driver's ear acc. to DIN 12053 | dB(A) | ＜82 |
| Service weight | kg | 3980 |
