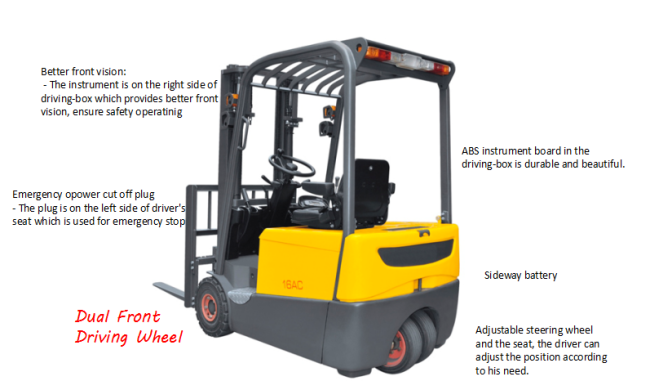

3m - 5m Dual Front Driving Three Wheel Electric Forklift With 1600kg Capacity
Dual front driving wheel electric forklift truck with 1600kg capacity and lift height from 3m to 5m
Specification
| Model | CPD20SA-16 | |
| Drive | Dual Front Drive Wheel | |
| Operation type | seated | |
| Load capacity/rated load | kg | 1600 |
| Load center distance | mm | 500 |
| Lift height | mm | 3000-6200 |
| Height, mast extended | mm | 4050-7250 |
| Overall length | mm | 2880 |
| Length to face of forks | mm | 1930 |
| Overall width | mm | 1070 |
| Fork dimensions | mm | 35/100/950 |
| Turning radius | mm | 1552 |
| Travel speed, laden/unladen | km/h | 14/14 |
| Lift speed, laden/unladen | mm/s | 290/450 |
| Max. gradeability, laden/unladen | % | 15/20 |
| Battery | V/Ah | 48/420(490) |
Advantage
- Germany imported driving axle.
- The United States imported AC control system CURTIS with sensitive reaction.

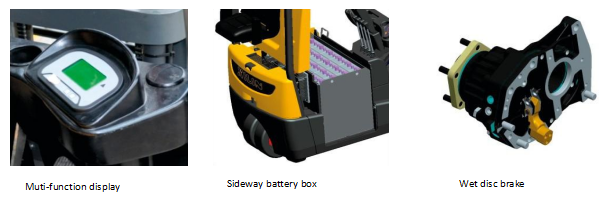

- Imported multifunctional liquid crystal instrument has intelligent display for fault code, battery status, forklift running information.
- AC driving motor: compact construe, high performance, regenerative brakin.
- Top-ranking running speed, loading speed and grade ability.
Running speed: unload 15km/h load 14km/h
Lifting speed: unload 450mm/s load 290mm/s
Grade ability: unload 20% load 15%
- Three running modes to choose according to different needs: low speed, moderate speed and high speed.
- Wet disk can make the forklift break stably, ensures high durability and safety.
- Lateral turning radius is only 1552mm and minimum right angle stacking aisle is ony 3220mm
