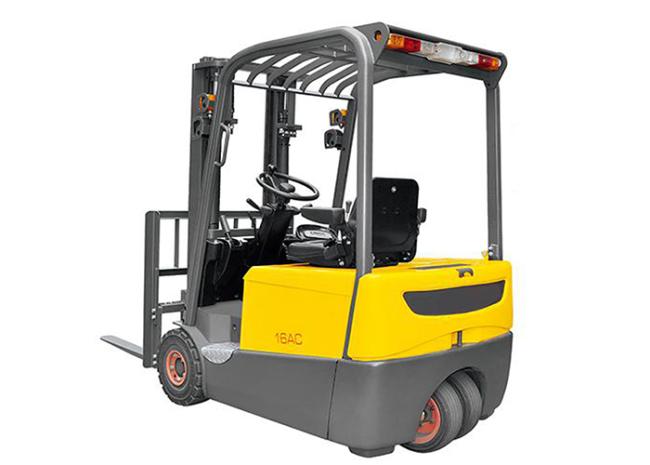

2000kg Double Driving Wheel Electric Forklift Truck With Lift Heigth 4.5m
2000kg Double driving wheel electric forklift truck with lift heigth 4.5m
Specification
| Model | CPD20SA-20 | |
| Drive | Dual Front Drive Wheel | |
| Operation type | seated | |
| Load capacity/rated load | kg | 2000 |
| Load center distance | mm | 500 |
| Lift height | mm | 3000-6200 |
| Height, mast extended | mm | 4050-7250 |
| Overall length | mm | 2880 |
| Length to face of forks | mm | 1930 |
| Overall width | mm | 1070 |
| Fork dimensions | mm | 35/100/950 |
| Turning radius | mm | 1552 |
| Travel speed, laden/unladen | km/h | 14/14 |
| Lift speed, laden/unladen | mm/s | 290/450 |
| Max. gradeability, laden/unladen | % | 15/20 |
| Battery | V/Ah | 48/420(490) |
Advantage
- With two step pedal easy to get into the driving cab.
- Adjustable steering wheel and the seat, the driver can adjust the position according to his need.
- ABS instrument board in the driving - box is durable and beautiful.
- AC driving motor: compact construe, high performance, regenerative brakin.
- Top-ranking running speed, loading speed and grade ability.
- Three running modes to choose according to different needs: low speed, moderate speed and high speed.
- Wet disk can make the forklift break stably, ensures high durability and safety.
- Lateral turning radius is only 1552mm and minimum right angle stacking aisle is ony 3220mm
