Standing Drive 3 Ton Heavy Duty Pallet Truck With AC / EPS 6.5Km/H

Price Negotiable
Price: USD6000~8000 Per unit
MOQ: 1
Delivery Time: 15 ~ 20 working days
Brand: REAXH
Product Description

Heavy duty capacity 3ton capacity electric pallet truck with AC and EPS





Specification



SPECIFICATIONS
Model   CBD30T
Load capacity/rated load kg/lbs 3000/6600
Load center distance mm/inch 600/24
Fork height, lowered mm/inch 82/3.2
Max. lifting height mm/inch 217/8.5
Fork dimensions mm/inch 55*230*1220/2.2*9.1*48
Aisle width for pallets 800*1200 lengthways mm/inch 2343/92.2
Travel speed, laden/unladen km/h 6/6.5
Battery V/Ah 24/300





Advantage

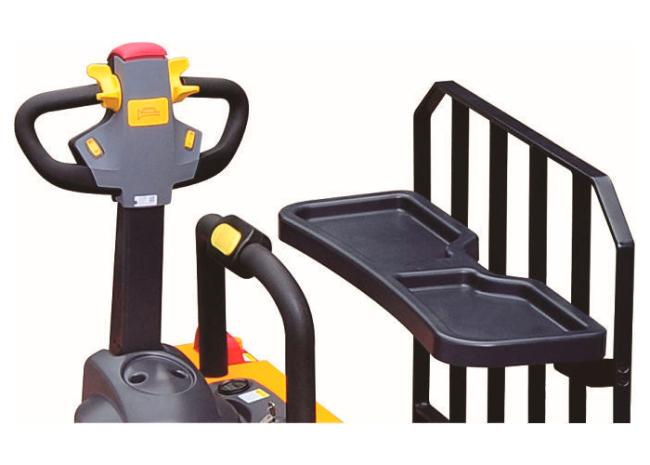

Standing drive motor system easy for maintenance.

Equipped with a load-backrest

The lifting height reaches 135mm, which provides better passing ability

Combined balance wheels increase steadiness, preventing the truck from being rocked from side to side,

The balance wheel is detachable, it is convenient to maintain.
