Walkie Type Compact Design Electric Pallet Truck 1500kg Load Capacity
Walkie type compact design electric pallet truck 1500kg load capacity
Quick details:
＞ Load capacity: 1500kg (1800/2000kg are available)
＞ Max. lifting height: 180mm / 190mm
＞ Height of tiller in drive postion, min./max.: 950mm / 1310mm
＞ Turning radius: 1347mm / 1415mm
＞ Battery voltage, nominal capacity K20: 24V/105Ah
Product specification:
| SPECIFICATIONS | ||
| Model | CBD15W | |
| Load capacity | kg | 1500 |
| Fork height, lowered | mm | 85/75 |
| Tyre size, front | mm | 195*70 |
| Tyre size, rear | mm | 80*70/74*70 |
| Max. lifting height | mm | 190/180 |
| Height of tiller in drive position min./max. | mm | 950/1310 |
| Overall length | mm | 1525/1595 |
| Length to face of forks | mm | 375 |
| Overall width | mm | 685 |
| Fork dimensions | mm | 53/160/1150(1220) |
| Width overall forks | mm | 520/550/685 |
| Aisle width for pallets 1000*1200 crossways | mm | 1725/1795 |
| Aisle width for pallets 800*1200 lengthways | mm | 1775/1795 |
| Turning radius | mm | 1347/1415 |
| Travel speed, laden/unladen | km/h | 5.3/5.8 |
| Battery | V/Ah | 24/80 |
| Service weight | kg | 230 |
Advantages:
1. CBD15W is workable in narrow aisle, turning radius only 1320mm-1389mm (width 520mm/550mm/685mm).
2. High electric efficiency DC brushless motor , maintenance free.
3. CBD15W uses full sealed battery which is free to maintain, battery capacity 80Ah fit for high intensity use .

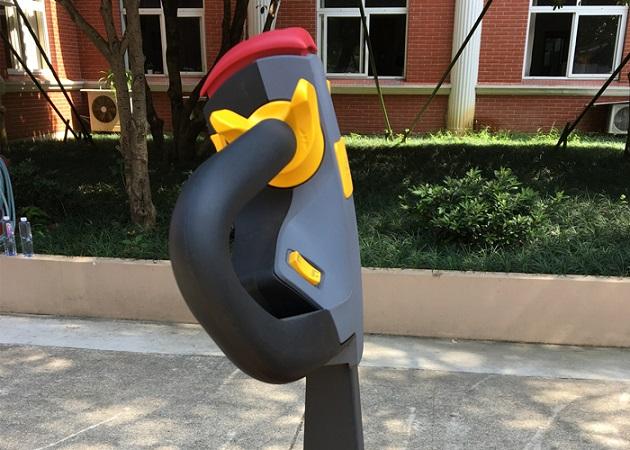

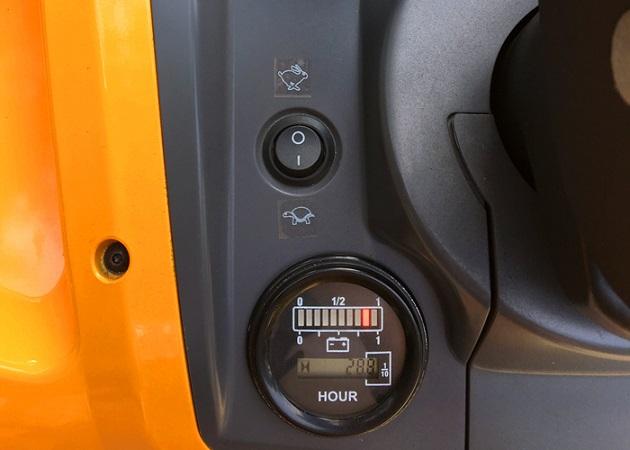

4. The max. speed limit button can release brake when handle under upright position, reduce turning space greatly. (option for Frei handle)
5. High travel speed, about 5.3-5.8km/h, which improves productive efficiency tremendously.
6. Floating balance wheel can adjusts height automatically, it will prevents shaking when unload.
7. Horizontal drive wheel provides convenient replacement.
... ...
