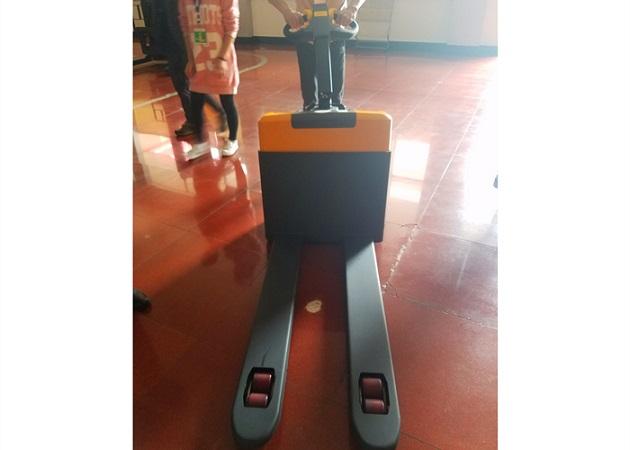

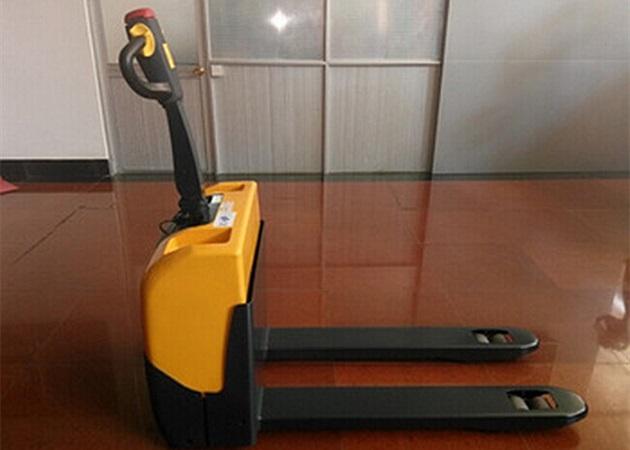

Reddot AC function 1800kg electric pallet truck , built in charger with curtis controller

Brief introduction:

The mini type full electric pallet truck CBD18W is with compact design and powerful motor, it has same outsize as manual pallet truck which offers samll turning radius.

CBD18W is widely used in narrow aisle workshop, super market and cargo containers.

＞ Load capacity: 1800kg (1500/2000kg are available)

＞ Max. lifting height: 180mm / 190mm

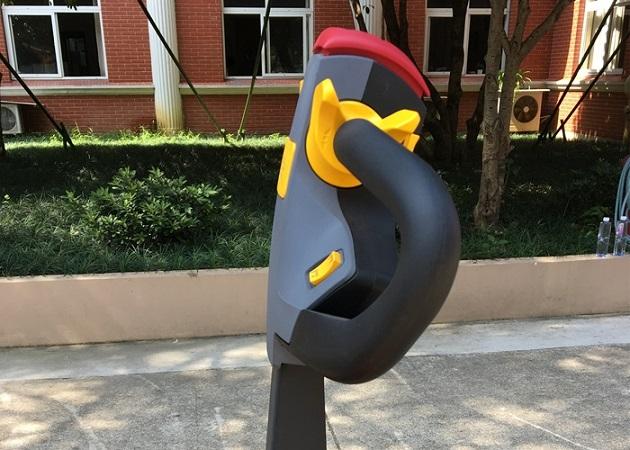

＞ Height of tiller in drive postion, min./max.: 950mm / 1310mm

＞ Turning radius: 1347mm / 1415mm

＞ Battery voltage, nominal capacity K20: 24V/105Ah

Product specification:

Advantages:

1. CBD18W is workable in narrow aisle, it has same outsize as manual pallet truck which offers samll turning radius.

2. Maintenance free DC brushless motor, high electric efficiency.

3. CBD18W uses full sealed battery which is free to maintain, battery capacity 105Ah fit for high intensity use.

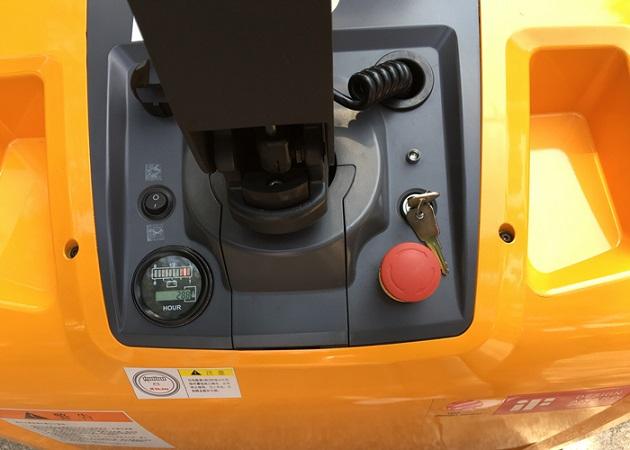

4. The max. speed limit button can release brake when handle in a upright condition which reduce turning space greatly.

5. 5.3-5.8km/h high moving speed, which improves productive efficiency greatly.

6. Floating balance wheel can adjusts height automatically, it will prevents shaking when there is nothing on the pallet.

7. Horizontal drive wheel is very convenient when replacement.

... ...
