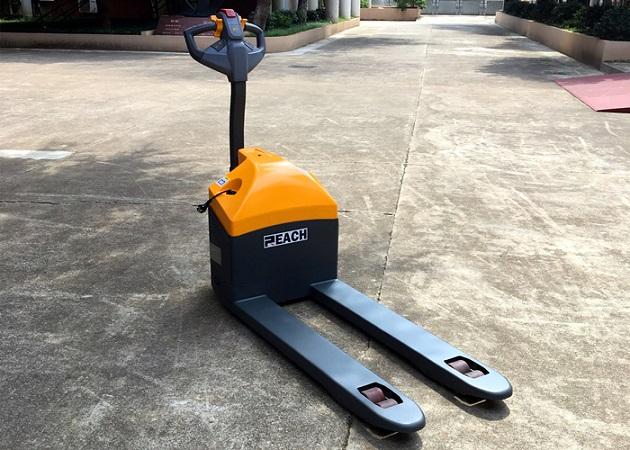

Portable 1.5 Ton Electric Pallet Truck Mini Pallet Jack For Supermarket

Portable 1.5 Ton mini electric pallet truck , widely used in narrow aisle

Brief introduction:

This mini type full electric pallet truck CBD15W-E has same outsize as manual pallet truck, which offers small turning radius. It is widely used in narrow aisle workshop, supermarket and cargo containers.

＞ Load capacity: 1500kg

＞ Max. lifting height: 190mm / 200mm

＞ Height of tiller in drive postion, min./max.: 700mm / 1250mm

＞ Turning radius: 1424mm / 1454mm

＞ Battery voltage, nominal capacity K20: 24V/65Ah

Product specification:

Advantages:

1). CBD15W-E uses floating balance wheel, which prevents the side swing of the truck when travelling and have great anti-vibration.

2). The balance wheels can be removed easily, easy to maintain.

3). The integral structure of rock arm mechanism which improves the strength effectively, meanwhile, share and adjust the even force from the fork and reduce the obvious deflection in fork height after a long use and when loading.

4). The drive wheel of CBD15W-E is using horizontal type structure which makes the layout position of the motor higher off the ground to prevent the water & dust and greasy dirt gluing on the motor effectively and improve working condition of the motor.

5). CBD15W-E is equipped with a height limit switch. Cut off the lifting circuit when lifting height approaches the highest point to disconnect the power of the hydraulic power unit to prevent the noise from the spillover of the hydraulic station and save the energy caused by spillover.
