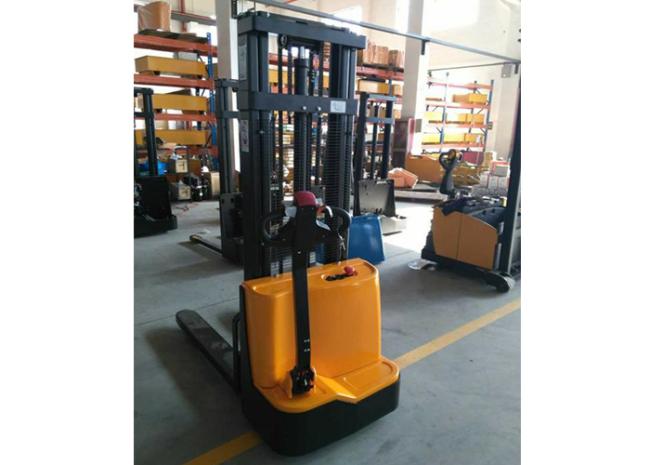

1200kg Narrow Width Walking Operating Electric Lift Pallet Stacker With Polyurethane Wheel

Price Negotiable

Price: USD 1500~ 2300

MOQ: 1

Delivery Time: Negotiable

Brand: REACH

Product Description

1200kg narrow width Electric pallet stacker with 3m max lift height

Specification

Model		QDAE
Driving type		Electric
Operating		Walking
Rated capacity	kg	1000/1200
Load center distance	mm	500
Wheels		polyurethane wheel
Max. lifting height	mm	1600/2500/3000/3300
Lowered mast height	mm	2080/1830/2080/2230
Overall height	mm	2080/2950/3450/3600
Min. fork height	mm	85
Overall length	mm	1750
Overall width	mm	790
Forks size	mm	60/142/1070
Travel speed, laden/unladen	km/h	3.5/4
Lift speed, laden/unladen	m/s	0.1/0.2
Battery	V/Ah	24/75, 24/120
Service weight	kg	553

Advantage

- Back cover is integrated type design, easy to assemble and maintain.
- Use GEL battery free to maintain.
- Built in charger easy to access to power supply.
- Low gravity design, 4 point design, improve the trucks stability.
- This drive unit have small turning, the motor and brake is very easy to replace.
- Compact design and small dimensions, offer excellent visibility.
- The turning radius and aisle width is very small and which is similar with manual stacker.
