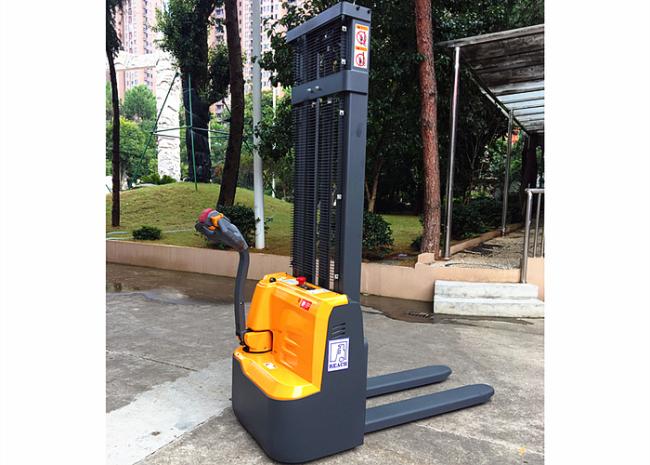

Walkie Type Full Electric Pallet Stacker For Narrow Aisle 24V / 105Ah
Walkie type full electric pallet stacker suitable for narrow aisle with CE
Quick details:
＞ Load capacity: 1200kg (1000kg is available)
＞ Max. lifting height: 1600mm / 2500mm / 3000mm
＞ Fork dimensions: 60×170×1150(1070)mm
＞ Lift speed, laden/ unladen: 0.12/0.22 m/s
＞ Travel speed, laden/unladen: 5/6 Km(h)
＞ Turning radius: 1365mm
Product specification:
| SPECIFICATIONS | ||
| Model | CDDR-E | |
| Load capacity | kg | 1200 |
| Load center distance | mm | 600 |
| Load distance, centre of drive axle to fork | mm | 741 |
| Height, lowered | mm | 90 |
| Tyre size, front | mm | 195*70 |
| Tyre size, rear | mm | 80*70 |
| Additional wheels (dimensions) | mm | 150*60 |
| Height, mast lowered | mm | 2090/1840/2090 |
| Max. lifting height | mm | 1600/2500/3000 |
| Height, mast extended | mm | 2090/3060/3560 |
| Height of tiller in drive position min./max. | mm | 670/1300 |
| Overall length | mm | 1748(1668) |
| Length to face of forks | mm | 598 |
| Overall width | mm | 800 |
| Fork dimensions | mm | 60/170/1150(1070) |
| Width overall forks | mm | 570/695 |
| Ground clearance, centre of wheelbase | mm | 26 |
| Aisle width for pallets 1000*1200 crossways | mm | 2218 |
| Aisle width for pallets 800*1200 lengthways | mm | 2173 |
| Turning radius | mm | 1365 |
| Travel speed, laden/unladen | km/h | 5/6 |
| Lift speed, laden/unladen | m/s | 0.12/0.22 |
| Lowering speed, laden/unladen | m/s | 0.14/0.14 |
| Battery | V/Ah | 24/100 |
| Service weight | kg | 615/640/660 |

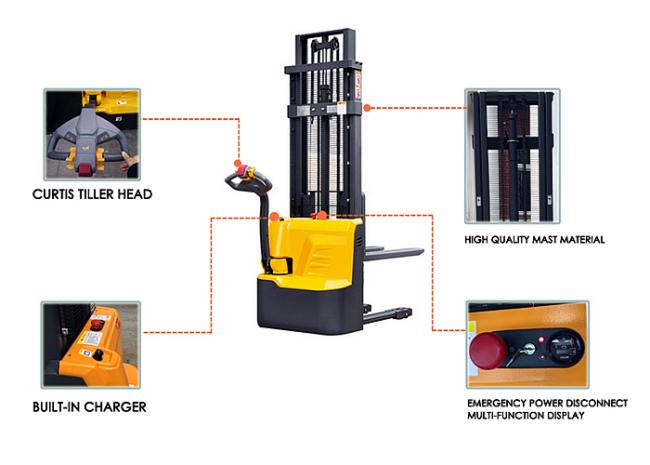

Advantages:
> Back cover by integrated type design , very easy to assemble and maintain.
> CDD12R-E Uses GEL battery free to maintain.
> This model use built in charge, which is easy to access to power supply.
> Low gravity design and 4 point design , improve the trucks stability.
> Drive unit has small turning , the motor and brake are easy to replace.
> The compact design and small dimensions , offer excellent visibility.
> The turning radius and aisle width is very small and which is similar with manual stacker.
...
