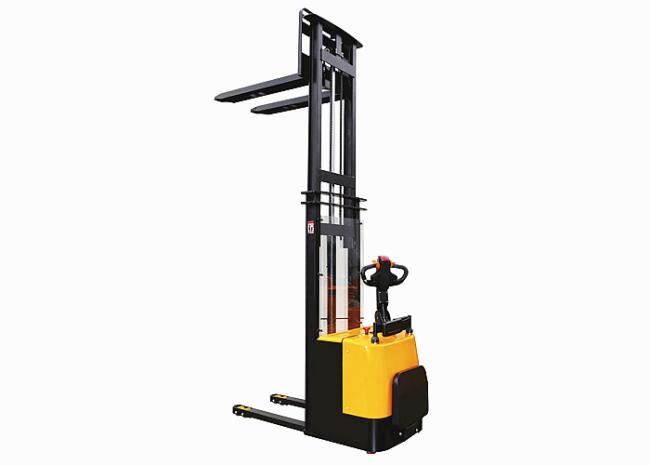

Long Working Hours AC Motor 1.2 Ton Full Electric Pallet Stacker

Quick details:

＞ Load capacity: 1200kg (1500kg is available)

＞ Max. lifting height: 2500mm / 3000mm / 3500mm

＞ Fork dimensions: 60×170×1150mm

＞ Lift motor power: 2Kw

＞ Max. gradient, laden/unladen: 3%/5%

＞ Battery voltage/rated capacity: 24V/120/210(240)Ah

Product specification:

Advantages:

1) QDA-12C equipped with explosion-proof value at the bottom of cylinder, even if the pipe burst, the mast will not rapidly decline.

2) This model is configured with Curtis Contreller.

3) The operating handle of QDA-12C is at the left side, allowing operators to work with greater vision.

4) Precision electronic limit switches, it controls the maximum lifting height, in order to prevent damage to the motor.

5) The circuit lines is covered by nylon casing, wiring clean and corrosion-resistant,oil resistant and wear-resisting.

6) This model is equipped with Emergency Power-off Disconnect and Emergency Reverse Switch.

7) Long working hours, maximum 10 hours.

...
