Mast Reach Type Load capacity 2 Ton Electric Pallet Stacker Heavy Duty Easy Operation
Mast Reach Type Load capacity 2 Ton Electric Pallet Stacker Heavy Duty Easy Operation
Quick details:
＞ Load capacity: 2000kg (1000/1500kg are available)
＞ Max. lifting height: 1600 - 4500mm
＞ Lift speed, laden/ unladen: 100/180 mm/s
＞ Travel speed, laden/unladen: 4/5 Km(h)
＞ Aisle width: 2670mm
Product specification:
| SPECIFICATIONS | ||
| Model | KLR | |
| Load capacity | 2000 | kg |
| Load center distance | 500 | mm |
| Max. lifting height | 1600 | mm |
| Reach length | 530 | mm |
| Tilting angle(up/down) | 3/5 | ° |
| Travel speed, without load | 5 | km/h |
| Travel speed, with load | 4 | km/h |
| Lifting speed, without load | 180 | mm/s |
| Lifting speed, with load | 100 | mm/s |
| Max. gradient, without load | 8 | % |
| Max. gradient, with load | 5 | % |
| Service weight | 2130 | kg |
| Overall length | 2890 | mm |
| Overall width | 1035 | mm |
| Height, mast lowered | 2200 | mm |
| Height, mast extended | 2650 | mm |
| Wheelbase | 1500 | mm |
| Fork length | 1070 | mm |
| Fork width | 120 | mm |
| Min. founf height | 55 | mm |
| Fork lowered height | 40 | mm |
| Fork spread width | 250-716 | mm |
| Min. turning radius (without platform) | 1760 | mm |
| Min. turning radius (with platform) | 2260 | mm |
| Min. intersecting aisle width | 2670 | mm |
| Front wheel | φ210×75 | mm |
| Drive wheel | φ230×75 | mm |
| Additional wheel | φ130×55 | mm |
| Wheel material | PU | mm |
| Drive motor | AC | |
| Lifting motor | DC | |
| Battery | 24/240 | V/Ah |
Advantages:

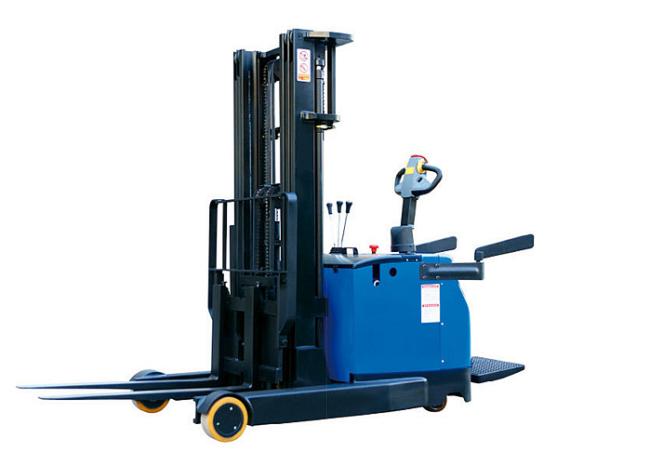

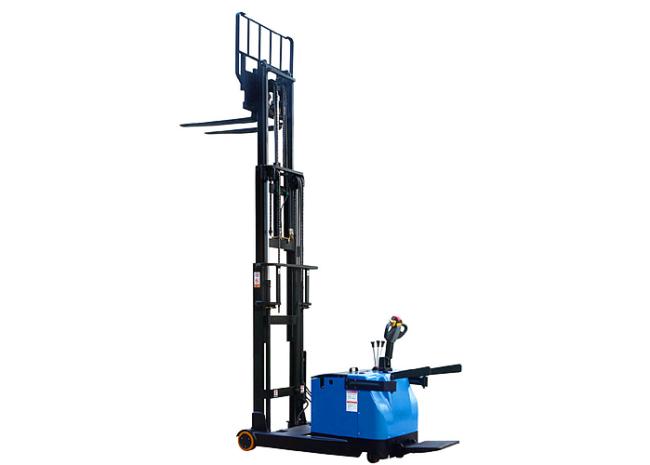

Electric Reach truck KLR - 24V with platform, stand on type
- EPS (Electronic power steering) system, easy to operate.
- KLR is equipped with Curtis controller, Albright contactor and AMP Waterproof power connector.
- Stand-on folding platform with shock absorption function.
- Foldable protective guardrail, protect falling-off the truck (not for lean on) and they’re dis-mountable.
- Mast uses high strength steel especially for forklift.
- Unique AC drive shock absorption, vertical driving wheels ensures convenient maintenance and better passing ability.
- Electromagnetic type clutch, regenerative brake, plug braking, ramp down braking and more multiple braking function.
- Automatic slow-down device when turn a corner.
