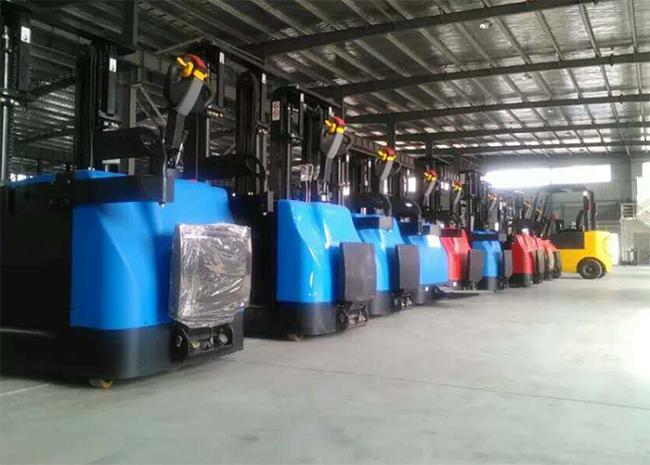

2ton 3m container stacker which is power stacker and stacker crane

Specification

Model: KLA20-30

Max load capacity: 2000 Kg                                    Fork demision: 100/40/1070 mm

Overall length of frame: 2830mm                            Overall lowered height: 940mm

Travel speed(load/unload): 4/5Km/h                       Lift speed(load/unload): 100/180 mm/s

Mast lowered height: 2190mm                                 Voltage and capacity: 24V/210Ah

Advantage

Capacity is 2 ton

Max lifting height is 3000mm

Magnet suction battery cover, easy for installation and maintenance;

With emergency stop switch and electricity lock buttion, and multi-valve controlling levers, ergonomic for operation;

The adjustable regulator valve can adjust the loweing speed of the masts;

High storage battery ensures strong and long- lasting power.
