Logistics Transfer Warehouse Forklift Lift Electric Power Source 1 Year Warranty

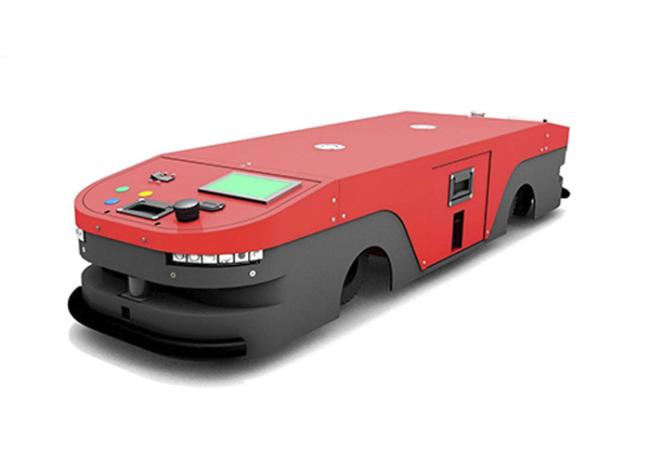

Logistics transfer warehouse forklift trucks lift or omni-direction or unidirection lurking AGV
The latent AGV refers to the AGV whose body height can be produced in the limited environment and can travel freely in the limited gap environment. The main characteristics of the latent AGV are exquisite and flexible, which can choose the nearest path when it is empty, greatly improving the turnover efficiency.
Double direction latent traction AGV can intelligently connect with the trolley and material frame,it use of electric lifting rod automatic hanging back contacts,traction cargo to the designated site,two-way driving, to achieve intelligent material distribution. AGV distribution is stable,accurate and highly flexible.Can be forward and backward,turn,bifurcation walk,the maximum traction weight up to 5000KG.
| basic parameter | Overall dimensions L*D*H(mm) | 1850*435*330 |
| Service weight(kg) | 260 | |
| Display | Have | |
| Capacity(kg) | 1000 | |
| Navigation mode | laser navigation,Visual navigation | |
| Operation form | Manual, automatic | |
| Drive mode | Double differential drive | |
| safety performance | Laser obstacle avoidance | Area safety laser |
| Collision bar detection | Front and rear half surround collision strip detection | |
| Emergency stop button | Front and rear emergency stop buttons | |
| Acousto-optic alarm | Have | |
| working performance | Max.driving speed(load/unload)(m/s) | 0.45/0.6 |
| Moving motor(W) | 200*4 | |
| Stopping precision(mm) | ±10 | |
| Moving direction | Forward and backward, left and right turning, bifurcation selection | |
| battery performance | Battery voltage(V) | 48V |
| Battery capacity(Ah) | 40AH | |
| Number of charging cycles(n) | 1500 | |
| Working time under rated working condition of primary charging(h) | 4-6 | |
| Charging time(h) | 2-3 | |
| Installation mode of charging board | Side two electrodes | |
| Charge mode | Automatic |
