AGV Intelligent Driverless Warehouse Forklift Trucks Laser Guided 1.5 Ton 2 Ton Pallet Truck

Name: AGV Intelligent Driverless Warehouse Forklift Trucks Laser Guided 1.5 Ton 2 Ton Pallet Truck
Brand: Shanghai Reach Industrial Equipment Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: 1 unit

Delivery Time: 60 to 90 days

Brand: REACH

Product Description

AGV Intelligent driverless warehouse forklift trucks Laser guided 1.5ton 2ton pallet truck stacker

Forklift AGV standard full-automatic stacker with automatic navigation function can realize unmanned forklift operation and reduce labor cost.

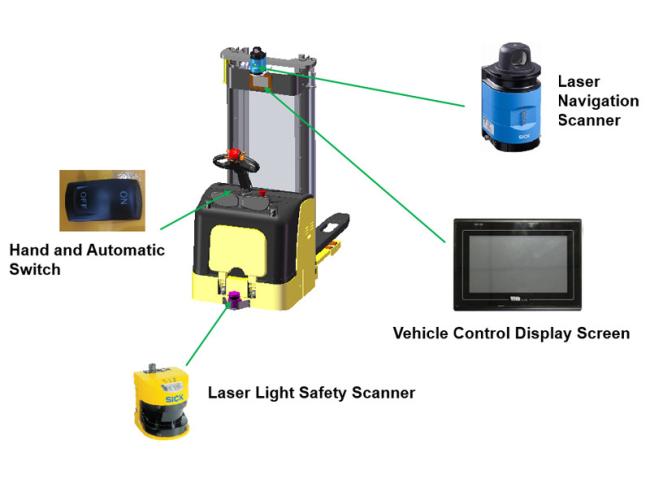

Walking function: optional magnetic navigation, laser navigation, visual navigation, cellular navigation, etc. Realize walking in all directions.
Operation function: realize unmanned operation.

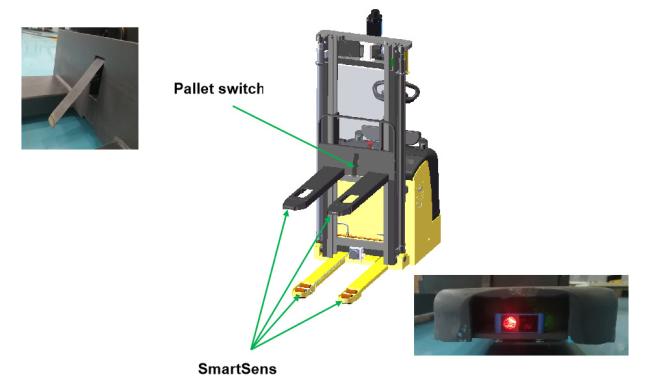

The system has high reliability, adopts imported brushless motor, AGV special safety sensor, safety touch, double safety protection.

Load capacity	kg	1500/2000
Load center distance	mm	600
Load distance, centre of drive axle to fork	mm	672
Fork height, lowered	mm	85
Tyre size, front	mm	250*70
Tyre size, rear	mm	80*84
Additional wheels (dimensions)	mm	150*60
Height, mast lowered	mm	1735/1985/2135/2235/2050/2210/2410
Free lift (option 2500-3500mm)	mm	1300/1550/1700/1800/1570/1740/1940
Max. lifting height	mm	2500/3000/3300/3500/4500/5000/5600
Height, mast extended	mm	2955/3455/3755/3955/5030/5510/6110
Initial lift	mm	1150/1450
Overall length	mm	2020/2100
Length to face of forks	mm	950
Overall width	mm	850
Fork dimensions	mm	60/180/1070(1150)
Width overall forks	mm	570/695
Aisle width for pallets 800*1200 lengthways	mm	2515
Turning radius	mm	1655
Travel speed, laden/unladen	km/h	6.5/6.7
Lift speed, laden/unladen	m/s	0.11/0.14
Lowering speed, laden/unladen	m/s	0.12/0.12
Battery	V/Ah	24/240
Service weight	kg	1180/1205/1220/1230/1280/1300/1320

Investment return and efficiency analysis

Category	AGV FORKLIFT	NORMAL FORKLIFT AND OPERATOR
Recruitment fee	no cost	about $50-150 per person
Wage cost	1. AGV forklift service life can be more than 10 years; 2. Maintain once every 6 months, the monthly cost is about $75.	At least $740 per person
Administration cost	no cost	In addition to the daily management cost, there will also be the comprehensive management cost of quality loss caused by worker's slowness, mood, health and other influences.
Stability of worker	there will be no loss of personnel	In society, it is more and more difficult to recruit workers willing to operate forklifts, and the loss rate of skilled workers is very high.
Accident rate	according to operation manual for maintenance, high safety and reliability.	There is a risk of manual misoperation, resulting in work inquiry or damage to shelves and goods.
