JIS / ASTM 430 Grade Stainless Steel Strip Coil 0.1 - 1.5mm BA Oxidation Resistance
Price:
negotiation
MOQ:
negotiation
Delivery Time:
around 2-6 weeks
Brand:
Yongjin, Baoxin, Shuoyang,Lisco
Product Description
Key Technical Data
| Description | Cold rolled stainless steel sheet in coils/Cold rolled stainless steel coils/CR stainless steel sheet in coils |
| Grade | 430 |
| Thickness | 0.1-1.5mm |
| Finish | BA1 BA2 |
| Width20 | 20-1250mm |
| Standard | JIS ASTM |
| Q'ty tolerance | +/-10% on order quantity |
About grade 430
Grade 430 is typical ferrite stainless steel, has low thermal expansion, good thermal conductivity,excellent formability and oxidation resistance.
Ferritic microstructure
CHEMICAL COMPOSITION
| STANDARD | GRADE | CHEMICAL COMPOSITION(%) | ||||||
| C max | Si max | Mn max | P max | S max | Ni | Cr | ||
| JIS | SUS430* | 0.12 | 0.75 | 1.00 | 0.040 | 0.030 | 16.00~18.00 | |
| GB | 1Cr17 | 0.12 | 1.0 | 1.00 | 0.040 | 0.030 | 0.75 | 16.00~18.00 |
| ASTM | S43000* | 0.12 | 1.0 | 1.00 | 0.040 | 0.030 | 0.75 | 16.00~18.00 |
| EN | 1.4016 | 0.08 | 1.0 | 1.00 | 0.040 | 0.015 | 16.00~18.00 | |
Mechanical Characteristics
| Material | Yield Strength | Tensile Strength | Elongation | Hardness | |
| (N/mm2) | (N/mm2) | (%) | HRB | HV | |
| 430 | ≥205 | ≥420 | ≥22 | ≤80 | ≤200 |

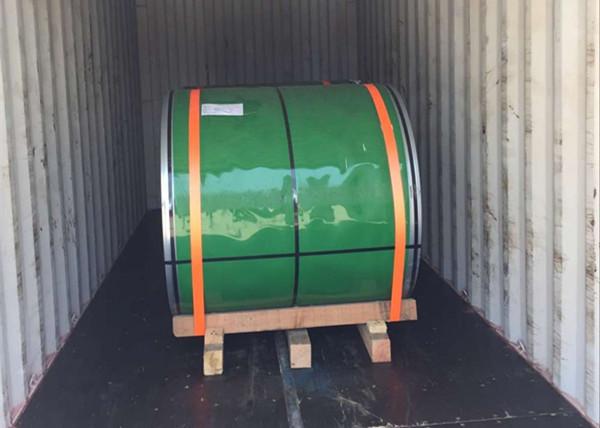

Package detail:
