Equal Angle Stainless Steel Bar 25 X 25 X 3mm - 100 X 100 X 12mm Optional
SUS304 SUS201 SUS 316L Stainless steel equal angle bar 25x25x3mm-100x100x12mm
Stainless steel angle may constitute vary structure parts when necessary, it can comprise of connections between structure parts too. It’s widely used in a variety of architectural and engineering structures, such as house beams, bridge beams, transmission tower, hoisting and conveying machinery, ships, industrial furnace, reactor, container rack and warehouse shelves.
Size Available
| Angle bar(in mm) | Thickness(in mm) | ||||||||
| 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | |
| 25x25 | |||||||||
| 30x30 | |||||||||
| 40x40 | |||||||||
| 50x50 | |||||||||
| 60x60 | |||||||||
| 65x65 | |||||||||
| 70x70 | |||||||||
| 75x75 | |||||||||
| 80x80 | |||||||||
| 100x100 | |||||||||
| Note: The color grey represents the range we eneable supply | |||||||||
Chemical Composition of our stainless steel angle bar
| Grade | Chemical composition(%) | ||||||
| C≤ | Si≤ | Mn≤ | P≤ | S≤ | Ni | Cr | |
| 201 | 0.15 | 1.00 | 5.5-7.5 | 0.5 | 0.03 | 3.50-5.50 | 16.00-18.00 |
| 202 | 0.15 | 1.00 | 7.5-10.0 | 0.5 | 0.03 | 4.00-6.00 | 17.00-19.00 |
| 304 | 0.08 | 1.00 | 2 .00 | 0.045 | 0.03 | 8.00-11.00 | 18.00-20.00 |
| 304L | 0.03 | 1.00 | 2 .00 | 0.045 | 0.03 | 8.00-12.00 | 18.00-20.00 |
| 309 | 0.20 | 1.00 | 2 .00 | 0.04 | 0.03 | 12.00-15.00 | 22.00-24.00 |
| 309S | 0.08 | 1.00 | 2 .00 | 0.045 | 0.03 | 12.00-15.00 | 22.00-24.00 |
| 310 | 0.25 | 1.50 | 2 .00 | 0.04 | 0.03 | 19.00-22.00 | 24.00-26.00 |
| 310S | 0.08 | 1.00 | 2 .00 | 0.045 | 0.03 | 19.00-22.00 | 24.00-26.00 |
| 316 | 0.08 | 1.00 | 2 .00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 316L | 0.03 | 1.00 | 2 .00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 316Ti | 0.08 | 1.00 | 2 .00 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 2205 | 0.03 | 1.00 | 2 .00 | 0.03 | 0.02 | 4.50-6.50 | 22.00-23.00 |
| 410 | 0.15 | 1.00 | 1 .00 | 0.04 | 0.03 | 0.60 | 11.50-13.50 |
| 430 | 0.12 | 0.12 | 1.00 | 0.04 | 0.03 | 0.60 | 16.00-18.00 |

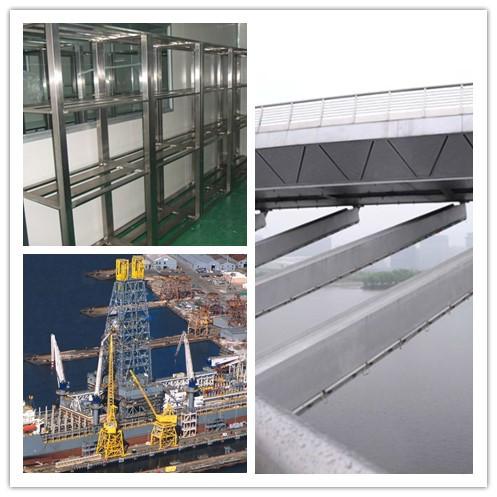

Application:
Stainless steel angle bar application consisits in the following fields:
Architectural and engineering structures, such as house beams, bridge beams, transmission tower, hoisting and conveying machinery, ships, industrial furnace, reactor, container rack and warehouse shelves.
