Industrial Welded Stainless Steel Round Tube 6mm - 300mm Nominal Diameter

Price Negotiable

Price: negotiation

MOQ: negotiation

Delivery Time: 4 weeks

Brand: SINOSTEEL

Product Description

TP304 TP304L TP316 TP316 stainless steel welded pipe SCH 5S SCH 10S SCH 40S

Advantage of stainless welded pipes

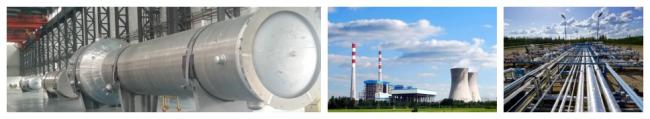

Due to product characteristics of high wall thickness uniformity, smooth and delicate surface,high temperature resistance, hight pressure resistance,corrosion resistance,long service life,energy saving and environmental protection and so on. The stainless steel welded pipe gradually tends to expand the scope of application and to enter may fields in which seamless tube could undertake in the past.

Products Range

Nominal Diameter		Outside Diameter	Norminal Wall Thickness(mm)
N.B	NPS	mm	SCH 5S	SCH 10S	SCH 40S
6	1/8	10.29		1.24	1.73
8	1/4	13.72	1.24	1.65	2.24
10	3/8	17.15	1.24	1.65	2.31
15	1/2	21.34	1.65	2.11	2.77
20	3/4	26.67	1.65	2.11	2.87
25	1	33.4	1.65	2.77	3.38
32	1 1/4	42.16	1.65	2.77	3.56
40	1 1/2	48.26	1.65	2.77	3.68
50	2	60.33	1.65	2.77	3.91
65	2 1/2	73.03	2.11	3.05	5.16
80	3	88.9	2.11	3.05	5.49
90	3 1/2	101.6	2.11	3.05	5.74
100	4	114.3	2.11	3.05	6.02
15	5	141.3	2.77	3.4	6.55
150	6	168.28	2.77	3.4	7.11
200	8	219.08	2.77	3.76	8.18
250	10	273.05	3.4	4.19	9.27
300	12	323.85	3.96	4.57	9.53
