Strong Stainless Steel Welded Tube , JIS G3459 Standard Large Stainless Steel Tube
Price:
negotiation
MOQ:
negotiation
Delivery Time:
4 weeks
Brand:
SINOSTEEL
Product Description
JIS G3459 stainless steel welded pipe SUS304 SUS304L SUS316 SUS316L
Products Range
| Nominal Diameter | Outside Diameter | Norminal Wall Thickness(mm) | |||
| N.B | NPS | mm | SCH 5S | SCH 10S | SCH 40S |
| 6 | 1/8 | 10.29 | 1.24 | 1.73 | |
| 8 | 1/4 | 13.72 | 1.24 | 1.65 | 2.24 |
| 10 | 3/8 | 17.15 | 1.24 | 1.65 | 2.31 |
| 15 | 1/2 | 21.34 | 1.65 | 2.11 | 2.77 |
| 20 | 3/4 | 26.67 | 1.65 | 2.11 | 2.87 |
| 25 | 1 | 33.4 | 1.65 | 2.77 | 3.38 |
| 32 | 1 1/4 | 42.16 | 1.65 | 2.77 | 3.56 |
| 40 | 1 1/2 | 48.26 | 1.65 | 2.77 | 3.68 |
| 50 | 2 | 60.33 | 1.65 | 2.77 | 3.91 |
| 65 | 2 1/2 | 73.03 | 2.11 | 3.05 | 5.16 |
| 80 | 3 | 88.9 | 2.11 | 3.05 | 5.49 |
| 90 | 3 1/2 | 101.6 | 2.11 | 3.05 | 5.74 |
| 100 | 4 | 114.3 | 2.11 | 3.05 | 6.02 |
| 15 | 5 | 141.3 | 2.77 | 3.4 | 6.55 |
| 150 | 6 | 168.28 | 2.77 | 3.4 | 7.11 |
| 200 | 8 | 219.08 | 2.77 | 3.76 | 8.18 |
| 250 | 10 | 273.05 | 3.4 | 4.19 | 9.27 |
| 300 | 12 | 323.85 | 3.96 | 4.57 | 9.53 |
CHEMICAL COMPOSITION
| STANDARD | GRADE | CHEMICAL COMPOSITION(%) | |||||||
| C max | Si max | Mn max | P max | S max | Ni | Cr | Mo | ||
| JIS | SUS304 | 0.08 | 1.00 | 2.00 | 0.040 | 0.030 | 8.00-11.00 | 18.00-20.00 | - |
| SUS304L | 0.03 | 1.00 | 2.00 | 0.040 | 0.030 | 8.00-13.00 | 18.00-20.00 | - | |
| SUS316 | 0.08 | 1.00 | 2.00 | 0.040 | 0.030 | 10.00-14.00 | 16.00-18.00 | 2.00-3.00 | |
| SUS316L | 0.08 | 1.00 | 2.00 | 0.040 | 0.030 | 12.00~16.00 | 16.00~18.00 | 2.00-3.00 | |
Mechanical Property
| ASTM | Grade | Yield Strength | Tensile Strength | Elongation | Hardness |
| KSi(Mpa) | KSi(Mpa) | % | HRB | ||
| TP304 | ≥515 | 205 | ≥35 | ≤90 | |
| TP304L | ≥483 | 170 | ≥35 | ≤90 | |
| TP316 | ≥515 | 205 | ≥35 | ≤90 | |
| TP316L | ≥483 | 170 | ≥35 | ≤90 |

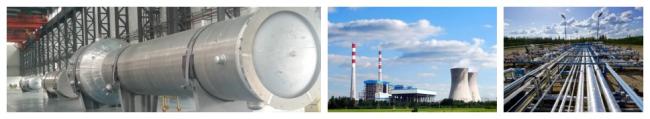

Main Application:
