304L Stainless Steel Hot Rolled Plate Width 3.0 - 30mm Finish No.1 Finish
Grade 304L hot rolled stainless steel plates width 3.0-30mm finish No.1
PRODUCT
| Grade | GB/T4237 | ASTM A240 | EN10088 |
| 304L | 022Cr19Ni10 | 304L | 1.4307 |
GENERAL PROPERTIES
The 18-8 stainless steels, alloy 304 and 304L,are the most familiar and most frequently used alloy in the stainless family.They are available in a wide range of product forms such as sheet,strip and plate.
MAIN SPECIFICATION:
- Thickness:3.0-30mm
- Finish: No.1
- Width:1000-1600mm
- Standard: GB JIS ASTM EN
Chemical composition for 304L
The typical chemical composition of 304L are listed in the following table. Among standard of GB,ASTM AND EN, the range of the chemical compostion of 304L has a slightly different. see here below:
| CHEMICAL COMPOSITION(%) | GB/T4237 | ASTM A240 | EN10088 | |
| C (max) | 0.03 | 0.03 | 0.03 | |
| Si (max) | 0.75 | 0.75 | 1 | |
| Mn (max) | 2 | 2 | 2 | |
| P (max) | 0.045 | 0.045 | 0.045 | |
| S (max) | 0.03 | 0.03 | 0.015 | |
| Mn (max) | 0.1 | 0.1 | 0.11 | |
| Ni | 8.00~12.00 | 8.00~12.00 | 8.00~12.00 | |
| Cr | 18.00~20.00 | 17.50~19.50 | 17.50~19.50 | |
Mechanical Characteristics
Among the Standards of GB,ASTM and EN,the range of mechanical properties has a slightly different, see here below the table:
| Standard | GB/T4237 | ASTM A240 | EN10088 | |
| GRADE | 022Cr19Ni10 | 304L | 1.4307 | |
| Yield Strength | (N/mm2) | 485 | 485 | 520-700 |
| Tensile Strength | (N/mm2) | 170 | 170 | 200 |
| Elongation | (%) | 40 | 40 | 45 |
| Hardness | HRB | 92 | 92 | 92 |

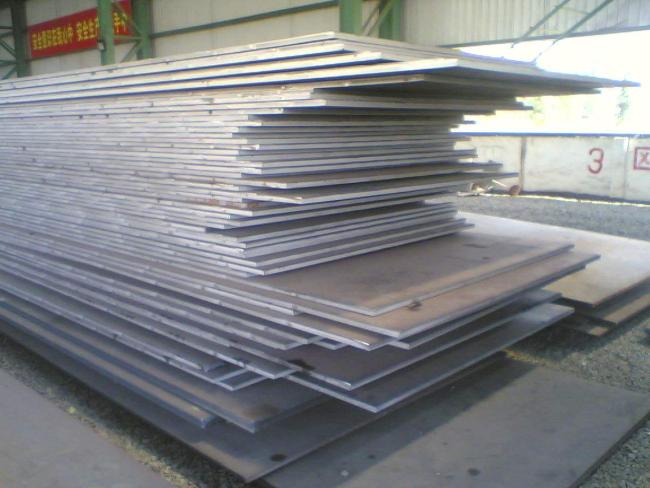

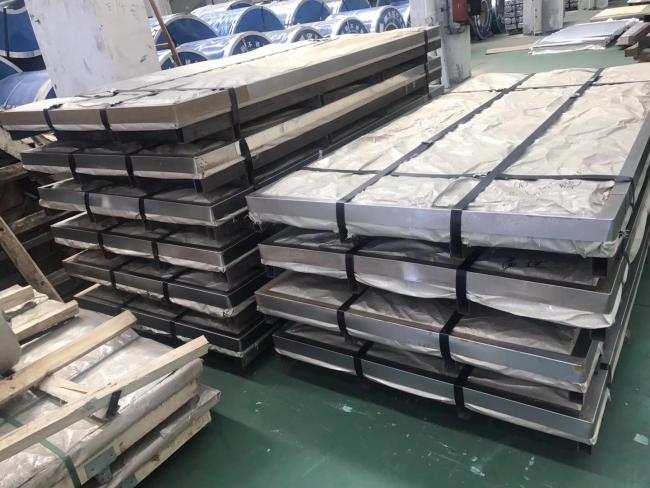

Products show
FAQ:
Q: How about the delivery time?
A: Generally it takes 15-35 days to make shipment after definition of P.O. and receipt of down payment or L/C.
Q:What’s your shipping terms?
A:,FOB,CFR,CIF would be preferred. In case of payment L/C, we accept CIF/CFR only.
Q:How about your payment terms?
A: As general rule. by T/T, 20% down payment after PO, the balance before shipment. Or full payment by irrevocable L/C at sight.
Q: Could you provide with sample free?
A: YES.We could. but airfreight for samples would at customers charge.
Q:How about MOQ?
A:It depends. Generally we suggest the MOQ is 1x20ft for easy shipment arrangement.but small trail order will be accepted.
Q: Which is your main overseas market?
A: our main markets is Korea, South East Asia, Middle East , North America, Russia, West Europe, South America,etc.
Q Can we pay a visit to factory before placement of order?
A: Certainly! You are warmly welcome to our factory at your convenience!
