Strong 304 Stainless Steel Coil 304DQ Grade Material Above 63% Elongation

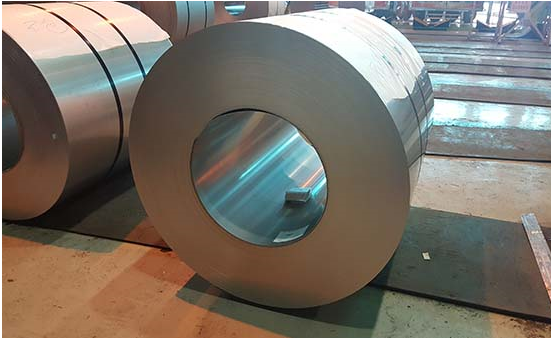

Deep drawing quality 304DQ cold rolled stainless steel coil & strip
Material: 304DQ cold rolled stainless steel coil & strip
Grade: 304DQ
Finish: 2B/2D/NO.4/HL/BA
Quality: Deep drawing, big elongation
Thickness: 0.3-3.0mm
Width:30-600mm,600-1250mm
Advantages: better deep drawing quality than common 304 grade, suitable for making deep drawing, bending and stretch forming.
Application: Home appliance (washing machine, dish washer,etc), kitchenware, water sink, other appliance need better deep drawing quality
Elongation: above 62%
| GRADE | RELATED GRADE | |||
| JIS | GB | ASTM | EN | |
| 304DQ | SUS304 | 06Cr19Ni10 | S30400 | 1.4301 |
304DQ and 304Cu for deep drawing applications:
| C | Si | Mn | P | S | N | Ni | Cr | Cu | |
| 304DQ | 0.06 | 0.75 | 1.00~1.50 | 0.035 | 0.015 | 0.05 | 8.00~10.50 | 18.00~20.00 | - |
| 304Cu | 0.06 | 0.75 | 1.00~1.50 | 0.035 | 0.015 | 0.05 | 8.00~10.50 | 18.00~20.00 | 0.70~1.30 |
Mechanical properties:
| GRADE | YIELD STRENGTH | TENSILE STRENGTH | ELONGATION | HARDNESS |
| % | ||||
| Mpa | Mpa | HV | ||
| 304DQ | 250~330 | 610~800 | ≥62 | 150-175 |
| 304CU | 230~330 | 580~720 | ≥62 | 140-170 |
Values we creat for you:
- We are based in Ningbo,China,close to Ningbo seaport, multi-optional international sailing line available. You may share a low sea freight.
- We enable to supply a wide variety of goods, from raw materials such as hot rolled and cold rolled coils/plates/sheets to downstream processing goods like stainless steel pipes,angle/flat/round bars,wire rods, as well as some auto exhaust pipes.
- Different scale of quality,for certain kinds of goods, we may supply more than one option for our customer.
- Diverse services for customers,except sales of physical goods, we may supply diverse services for our clients, such as slit big coils to smaller ones, “cut to length” for plates/sheets, OEM services etc.
- Customized design, produce as per customer's request.
- Provide 24hours phone services, you may find us at any time.
- Quick response to your inquiry, email, problems and questions.
