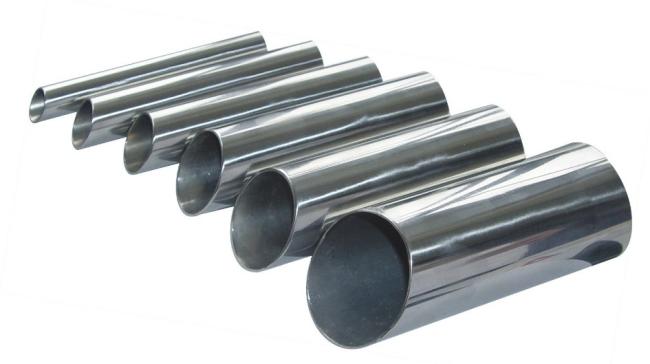

Welded Stainless Steel Pipe For Food Hygiene Grade Pipe 4m / 6m Length
JIS G3459 stainless steel welded pipe for food hygiene grade pipe
Products Range
Outer Diameter(mm): 25.40,31.8,38.1,50.8,63.5,76.3,89.1,101.6,114.3,139.80,165.2
Wall thickness(mm):1.2/1.5/2.0/3.0
Length(m): 4, 6 or as per your request
Dimensional Tolerance Table
JIS G3447
| Outside Diameter (mm) | Thickness Tollerance (mm) | Length Tolerance (mm) | |
| 25.4 | ±0.15 | ±10% | +10 -0 |
| 31.8 | ±0.16 | ||
| 38.1 | ±0.19 | ||
| 50.8 | ±0.25 | ||
| 63.5 | ±0.25 | ||
| 76.3 | ±0.25 | ||
| 89.1 | +0.30 -0.40 | ||
| 101.6 | +0.35 -0.40 | ||
| 114.3 | +0.40 -0.60 | ||
| 139.8 | +0.40 -0.80 | ||
| 165.2 | +0.40 -1.20 | ||
Commercial Conditions:
| Q'ty tolerance | +/-10% on order quantity | Shipping terms | FOB CFR CIF etc. |
| Country of Origin | made in China | Main application | For food hygiene grade tube |
| Payment terms | by T/T in advance or by irrevocable L/C at sight | Package | Seaworthy standard export package with pallet |
Producst Show:
Juye Metal’s business is covering full range of stainless steel flat and long products, includes all series of (300 series, 400 series, 200 series, duplex) stainless steel coils, plates, strips, sheets, bars, pipes ,tubes, wire rods, etc. Benefit from our ready stock in warehouses and professional processing facilities, we can provide prompt delivery of the materials and customized products to meet the diversified demands of the market.
