DIN 11850 Food Grade 28mm OD Stainless Steel Tube , 316L Food Grade SS Pipe
Price:
negotiation
MOQ:
negotiation
Delivery Time:
about 4 weeks
Brand:
SINOSTEEL
Product Description

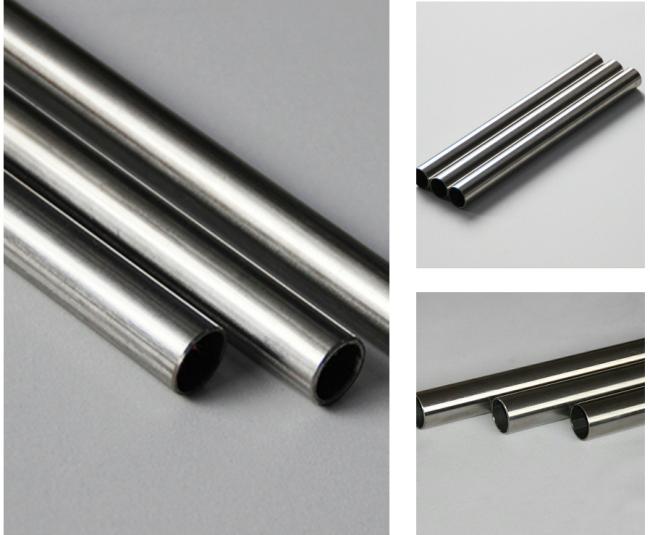

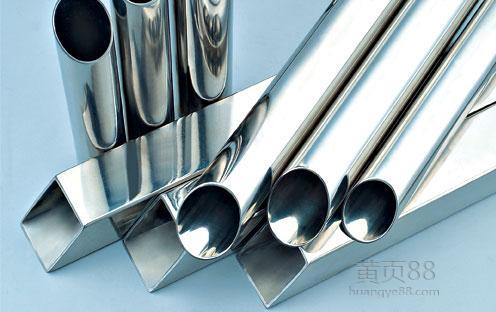

DIN 11850 stainless steel tube for food hygiene grade tube grade 316L
Products Range
Series one:
| Norminal Diameter(mm) | 10 | 15 | 20 | 25 | 32 | 40 | 50 |
| Outer Diameter(mm) | 12 | 18 | 22 | 28 | 34 | 40 | 52 |
| Tolerance on OD | ±0.1 | ±0.11 | ±0.14 | ±0.17 | ±0.2 | ±0.26 | |
| Wall thickness(mm) | 1 | ||||||
| Wall tolerance | ±0.1 | ||||||
Series two:
| Norminal Diameter(mm) | 10 | 15 | 20 | 25 | 32 | 40 | 50 |
| Outer Diameter(mm) | 13 | 19 | 23 | 29 | 35 | 41 | 53 |
| Tolerance on OD | ±0.1 | ±0.12 | ±0.15 | ±0.18 | ±0.21 | ±0.27 | |
| Wall thickness(mm) | 1.5 | ||||||
| Wall tolerance | ±0.15 | ||||||
Calculation for Stainless steel pipe weight
| Grade | Density(Kg/dm3) | Calculation | |
| SUS304 | SUS304L | 7.93 | W=0.02491 t(D-t) |
| TP304 | TP304L | 7.90 | W=0.02482 t(D-t) |
| SUS316 | SUS316L | 8.00 | W=0.02513 t(D-t) |
| TP316 | TP316L | 8.00 | W=0.02513 t(D-t) |
Main Application:
- Food industry
- Pharmaceutical Industry
- Some other areas which has requirements on inside bead
