SS301S Steel Wire Rod For Metal Lines / Cold Heading , Durable Metal Wire Rod
301S stainless steel wire rods for metal lines and cold heading Φ5mm~Φ38mm
Material
| Grade | Standards | |||
| GB/T 20878-2007 | JIS G4303:2005 | ASTM A959-09 | EN 10088-3:2005 | |
| 310S | 06Cr25Ni20 | SUH310s | S31008 | 1.4845 |
Main Specification:
Description:Stainless steel rod
Grade:310S
Diameter: 5mm~38mm
Coil weight: 500kg~2500kg
Dimensional Tolerance: Grade A,Grade B,Grade C
Length:Cut to customer needs
Dimensional Tolerances for stainless steel wire rod
| Diameter (mm) | Tolerance(mm) | Ovality(mm) | ||||
| Grade A | Grade B | Grade C | Grade A | Grade B | Grade C | |
| ≥5.0~10 | ±0.30 | ±0.25 | ±0.15 | ≤0.50 | ≤040 | ≤0.24 |
| >10~15 | ±0.40 | ±0.30 | ±0.20 | ≤0.60 | ≤0.48 | ≤0.32 |
| >15~25 | ±0.50 | ±0.35 | ±0.25 | ≤0.70 | ≤0.56 | ≤0.40 |
| >25~38 | ±0.60 | ±0.40 | ±0.30 | ≤0.96 | ≤0.64 | ≤0.48 |
Chemical Composition:
Grade:310S
C:≤0.08%,Si:≤1.50%,Mn≤:2.0%,P:≤0.045%,S:≤0.030%,Cr:24%-26%,Ni:19%~22%
Features and Application
Features: has good formability, heat resistance and corrosion resistance, no magnetic, ultra-low carbon. Which makes the material has good intergranular corrosion resistance.

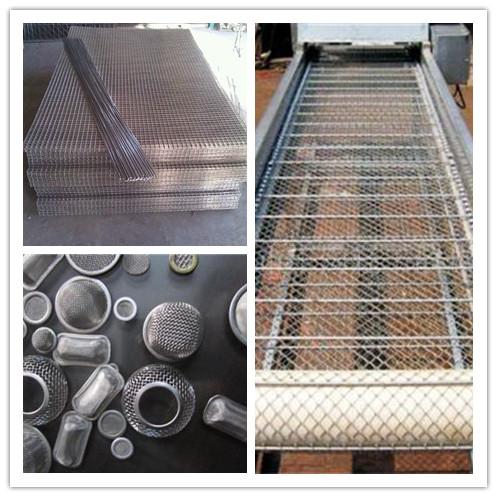

Usage: used as welded mesh, woven mesh, conveying belt and filter mesh.
