321 Stainless Steel Wire Rod For Metal Lines Custom Length High Strength
321 stainless steel wire rod diameter 5mm~38mm for metal lines
1, Production Details.
| Diameter: | 5mm~38mm |
| Coil weight: | from 500kg to 2500kg |
| Standard: |
JIS G4303:2005 JIS G4311:1991 ASTM A959-09 EN10088-3:2005 |
| Material: | SUS321 S32100 1.4541 |
| Application: | Welding materials |
| Grade : | A B C according to the attached tollerance table |
Tollerance list
| Diameter (mm) | Tolerance(mm) | Ovality(mm) | ||||
| Grade A | Grade B | Grade C | Grade A | Grade B | Grade C | |
| ≥5.0~10 | ±0.30 | ±0.25 | ±0.15 | ≤0.50 | ≤040 | ≤0.24 |
| >10~15 | ±0.40 | ±0.30 | ±0.20 | ≤0.60 | ≤0.48 | ≤0.32 |
| >15~25 | ±0.50 | ±0.35 | ±0.25 | ≤0.70 | ≤0.56 | ≤0.40 |
| >25~38 | ±0.60 | ±0.40 | ±0.30 | ≤0.96 | ≤0.64 | ≤0.48 |
2, Chemical Composition
Grade:321
C:≤0.08%,Si:≤1.00%,Mn≤:2.00%,P:≤0.045%,S:≤0.030%,Cr:17%-19%,Ni:9%~12%,Cu≤0.75%
N≤0.05%,Ti:5(C+N)~0.70

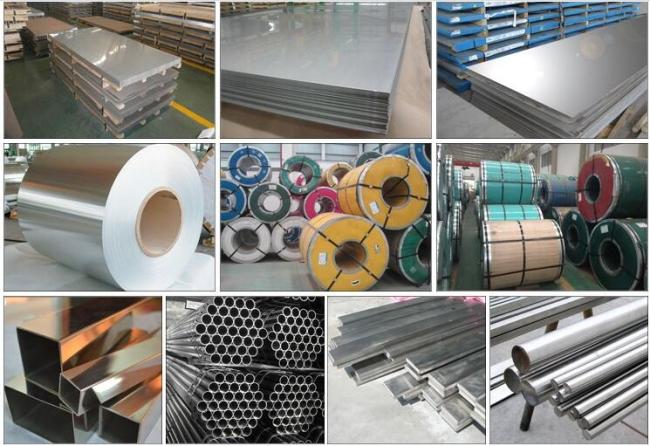

3, Related Production
4, FAQ
Q:How long is your delivery time?
A:Generally it is within 20 working days after receiving deposit,and exactly it is according to quantity
Q:Do you provides samples? Is it free or extra?
A:Yes,we can provide the samples for free but we will not paythe cost of freight.
Q:What is your terms of payment?
A:Either by L/C OR by T/T.
