The steps to install a car air conditioning compressor are as follows:

1. Prepare the vehicle by securely parking it on a level surface and engaging the parking brake.

2. Safely lift the front of the vehicle using a hydraulic jack and securely support it with jack stands.

3. Use a refrigerant recovery machine to evacuate the system and remove any remaining refrigerant.

4. Disconnect the negative terminal of the vehicle's battery to prevent electrical accidents.

5. Remove the drive belt by releasing tension from the belt tensioner and carefully sliding the belt off the compressor pulley.

6. Unplug the electrical connector from the compressor and disconnect any other ancillary connections.

7. Carefully remove any mounting brackets or bolts securing the compressor to the engine/block.

8. Extract the old compressor from its location, taking care not to damage any surrounding components.

9. Before installing the new compressor, apply a thin layer of refrigerant oil to the o-rings or sealing surfaces of the compressor fittings.

10. Align the new compressor correctly and insert it into position, taking care to avoid excessive force or misalignment.

11. Reinstall the mounting brackets or bolts and tighten them to the manufacturer's recommended torque specification.

12. Reconnect the electrical connector and any other ancillary connections previously disconnected.

13. Install the drive belt onto the compressor pulley, ensuring it is properly aligned and under appropriate tension.

14. Reconnect the negative terminal of the vehicle's battery and ensure it is securely attached.

15. Lower the vehicle from the jack stands and remove the hydraulic jack.

16. Perform an evacuation and recharge of the system, following the manufacturer's guidelines and using the appropriate amount of refrigerant.

17. Finally, test the system to ensure the compressor is functioning properly and there are no refrigerant leaks.

Please note that it is important to consult the vehicle's service manual or seek professional assistance to ensure proper installation of a car air conditioning compressor.

WNRLN Packing

ß ß ßWNRLN packaging and shock-proof foams, which have protective functions.

Their thickness is thicker than ordinary box and foam , Relatively speaking, the quality of WNRLN packaging is better than that of ordinary packaging.

ß ß ß It has the advantages of good stiffness and high wear resistance.

It is deeply loved by domestic and foreign customers.

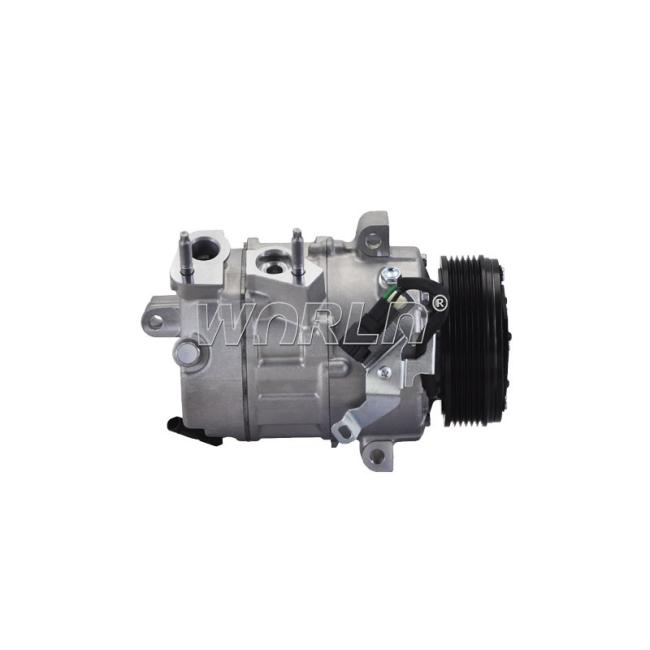

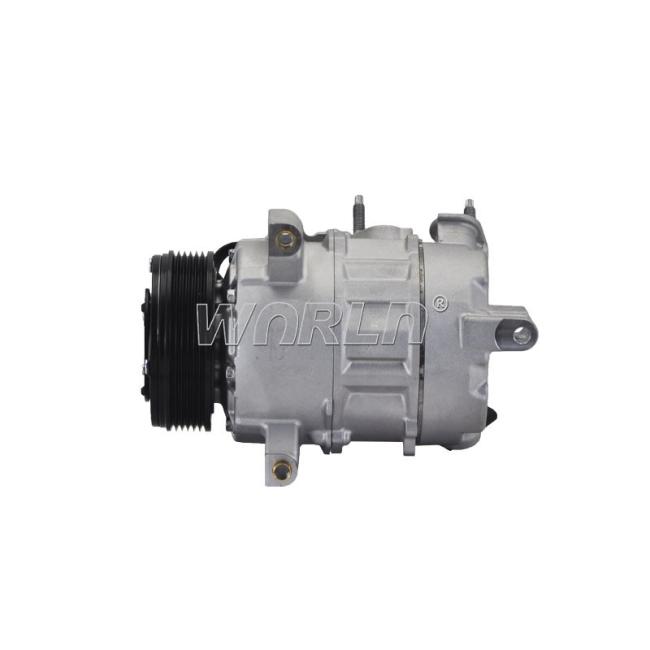

Goods Pictures
