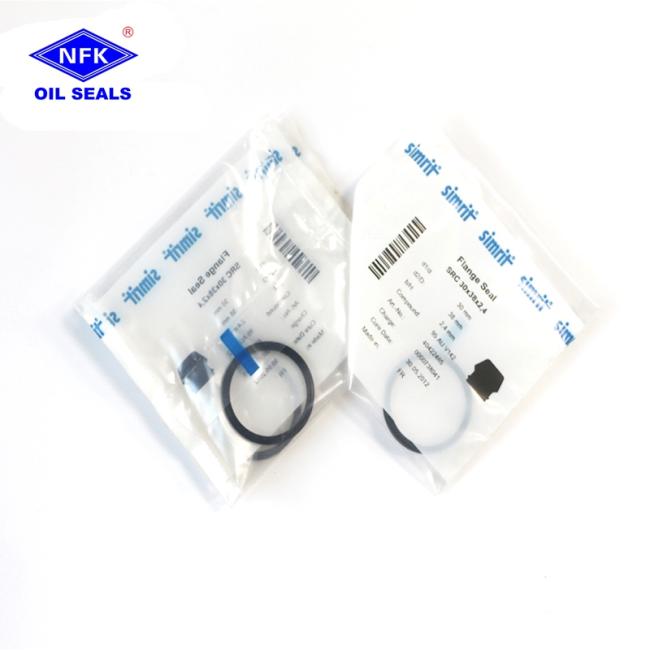

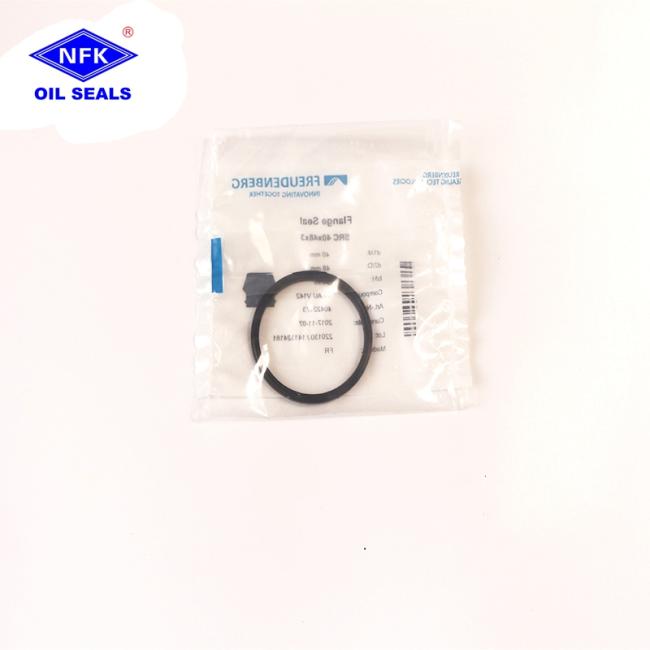

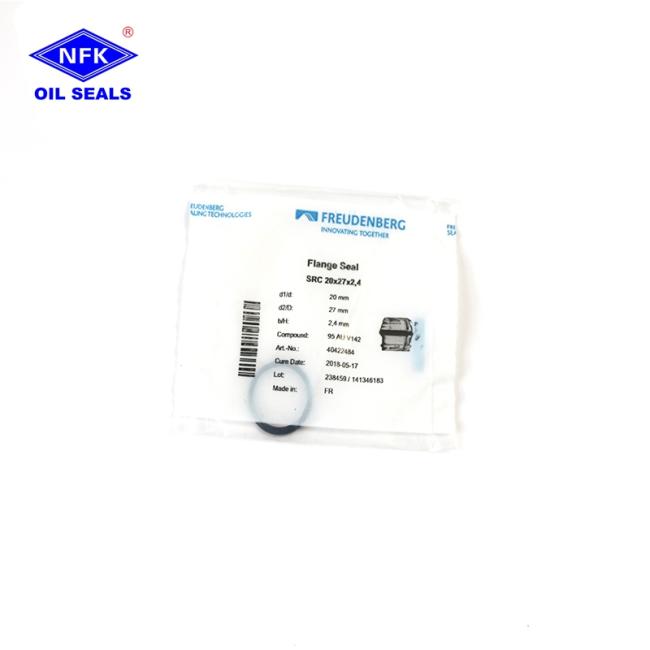

Flange Rubber Seal CFW Multi-size Hydraulic Seals Ring Genuine Packaging German Original for SIMRIT Mechanical Machine Seals
Price:
Negotiable
MOQ:
20 pieces
Delivery Time:
3-4 working days after payment
Brand:
CFW
Product Description
|

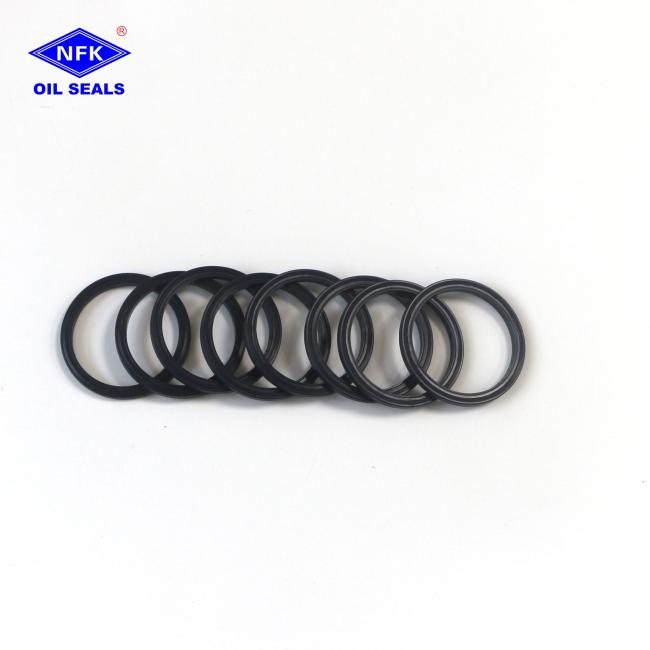

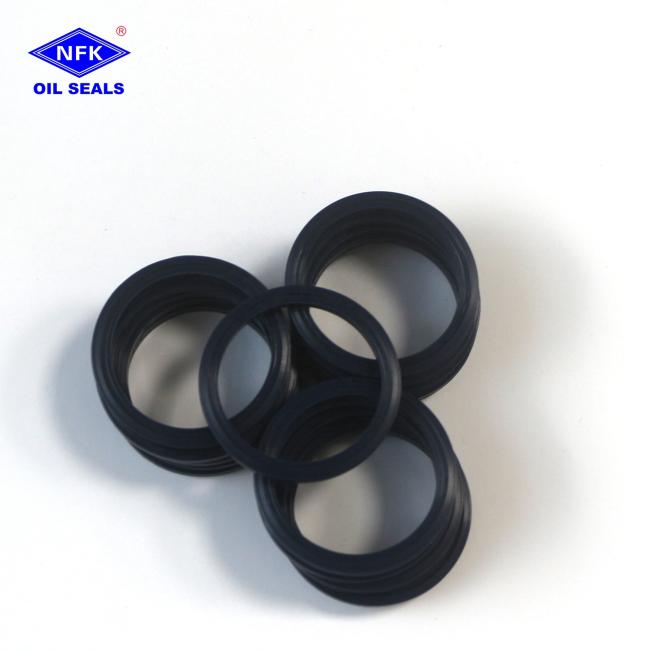

Product Name:
|
U-seal/Rod Seal
|
Place of Origin:
|
Germany
|
|
Type&Size:
|
SRC
|
Standard:
|
Standard Size
|
|
Brand:
|
CFW
|
Tempreture:
|
-35℃~+100℃
|
|
Color:
|
blue
|
Pressure:
|
70Mp
|
|
Material:
|
NBR
|
OEM/ODM
|
OEM Accept
|
|
Certificate:
|
No
|
Application:
|
hydraulic cylinder
|
|
MOQ:
|
20pcs
|
Service:
|
Customize Special Sizes
|
1......Product characteristics
1. Speed = >Mechanical movement speed is high, the lubrication oil film may be destroyed, because of not good lubrication and friction heating oil seal, cause life is greatly reduced, we use polyurethane or rubber oil seal at 0.03 m/s ~ 0.8 m/s speed within the scope of work is good.
2. The temperature= > Low temperature will lower the elasticity of polyurethane or rubber seal, cause leaks, and even the entire oil seal becomes hard and brittle. High temperature can make oil seal volume expansion, soft, cause movement oil seal friction resistance increase rapidly and reduce the compression capacity. Suggest polyurethane or rubber oil seal work continuously - 10 ℃ ~ + 80 ℃ temperature range.
3. Should= > Consider when pressure = "high pressure oil seal compression deformation, repellent extrusion ring, groove processing aspect also have special requirements. For get together ammoniac fat sealing the best working pressure in the range of 2.5 ~ 31.5 MPa.
4. Load=>Oil cylinder can bear larger load, seal and bearing ring in a completely different role, suggest polyurethane sealing ring to ensure that the cylinder can bear larger load.
Guess you like

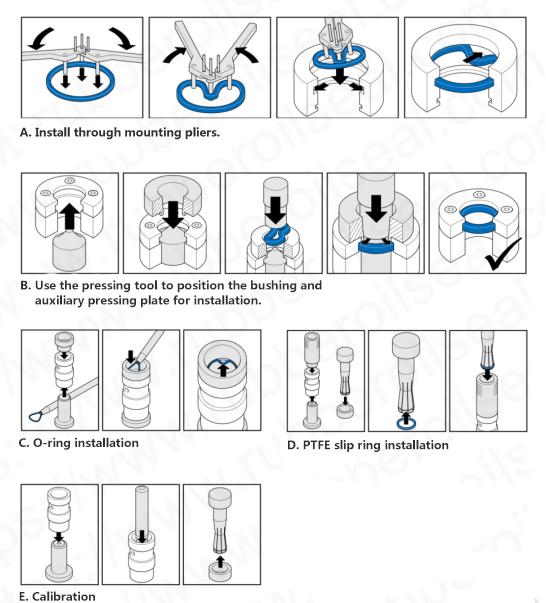

—— Installation Process ——
1....Piston rod seal
The following is what you need Insert the positioning sleeve into the cavity.Place the auxiliary pressure plate on the cavity If the installation is not carried out correctly or the seal is damaged during the installation process, even having the best seal will not help. In order to ensure that such a situation does not happen, Guangzhou UP.SEALING Technology Co., Ltd. provides you with tailor-made installation tools. Correct installation is a key factor affecting the performance and service life of the seal.Put in the piston rod seal ,Use a press tool to push the seal into the cavity
2....Care Note the following when keeping the seal:
1)Do not open the package when not required. Otherwise, the seal may be "dusty" or "scratched".
2) Keep in places where the humidity is low and avoid direct sunlight. UV and moisture can accelerate deterioration of rubber materials and size change and deterioration of resin materials.
3) When keeping opened products, be careful not to attach or mix, repackage as much as possible. Especially, nylon will change changes due to moisture absorption, so seal after storage. If moisture proof packaging, please contact US.
4)Do not place near hot heat sources such as boilers and heaters. Rubber materials will accelerate deterioration due to heat.
5)Do not place them near items such as motors that are prone to ozone production.
6) Do not hang with nails, wire, rope, etc., to deform the seal or injure the front end of the lip.
7)discoloration or white powder may occur during storage (frosting), but these conditions will not affect service performance.
8)The PTFE slip ring of the combined seal is easy to cause damage due to falling impact or external hard force. Please pay attention for use.

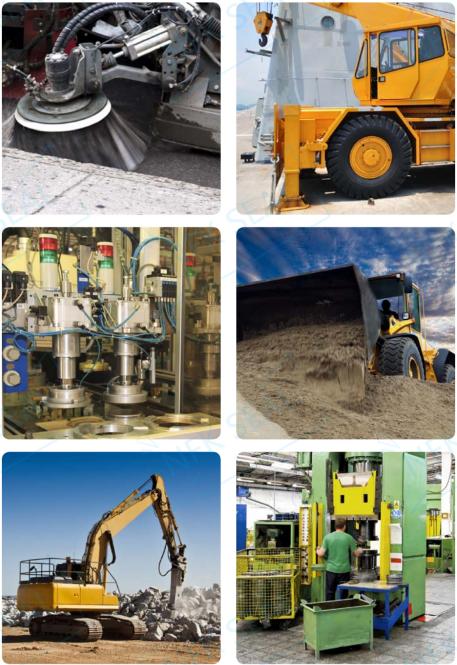

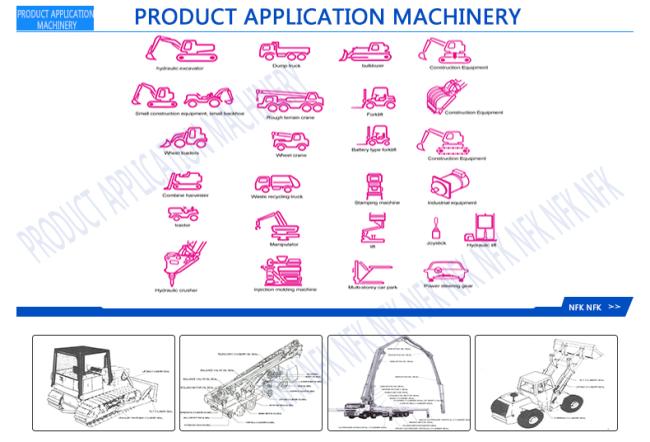

Using industry
