Ø1.2 Mm Thickness Steel Lifting Slings 20 KG Safe Working Load For Hanging Kit
304 SS Wire Rope Sling with Die Cast End , 1.2mm Wire Rope Assemblies
Wire rope assemblies are completed cable systems that involve the cable
as well as any fittings in the form of additional hardware or rope termination techniques.
7X7 304 Stainless Steel Wire,with a end of dia casting,
The dia casting size is Ø10*9,which can match many of the objests to hang.
Wire ropes are used in a range of industries such as mining, transportation,
and material handling among others that require various heavy-duty lifting applications.

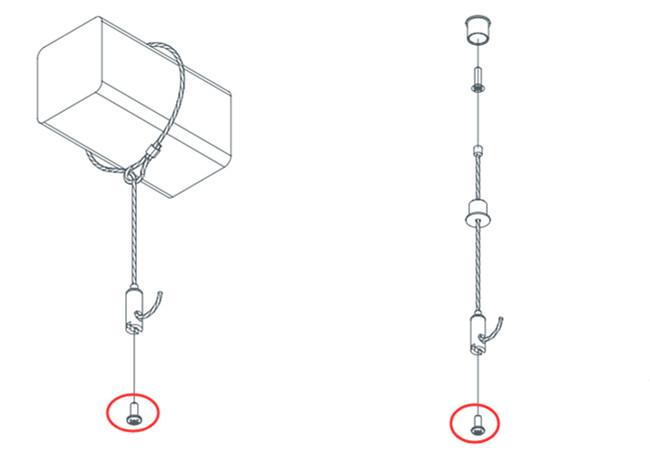

This is a braided support cable for suspension system.
Cable can be sold in various lengths to work with most any ceiling height.
It has a terminal attached at one end. With this system the cable is inserted
into the ceiling coupler on one end and the cable glider on the other.
No tools are required to do this. Once the system is installed the cable can
be adjusted by sliding it through the cable glider and releasing the top plunger when needed.
Once your entire suspension system is installed and working and you have the
exact desired height of your track you can cut away the excess cable.
This wire rope sling is a part of the suspension system.
Used for applications where you have a hight ceiling, curved or slope ceiling or difficult installation.
Description
| 1. Item Name | Wire Rope Sling / Wire Rope Assemblies |
| 2. Material | 304 Stainless Steel Wire |
| 3. Dia Cast Size | Ø10*9mm |
| 4. Cable Diameter and Length | Ø1.2*1000mm;Or Customize |
| 5. Finishing Color | Silver |
| 6. Application |
Used for Hanging Kit,Suspension System etc. |
| 7. Safe Working Load | 20KG |
| 8. Content | 1*Stainless Steel wire with Dia Cast terminal |
| 9. Advantages |
1. Quick to suspend lighting fixtures during the installation; 2. Work with grippers,require no tools to adjust, up or down, down or up – as often as you like; 3. Stainless steel are available in various diameters and lengths; 4. Offer the perfect solution for the suspension of the fixtures; 5. Compact design,easy taking and delivery. |
Wire Rope and Cable Available:
1.304 Stainless Steel Wire,7X7;
2.Galvanized Steel Wire;
3.Nylon and PVC jacketed cable in numerous colors.
End Fittings and Hardware Available:
1. Custom Machined End Fittings
2. Stop Sleeves
3. Button Stops
4. Ball Fittings
5. Cylinder
6. Threaded Studs
7. Hooks
8. Shackles
9. Wire Rope Clips
10. Turnbuckles
11. Thimbles
FAQ
Sample Charge:
Yingwei provides a limited amount of product samples, usually free of charge;
Buyer is to provide a shipping account number for freight collected.
NOTE:Multiple samples may be not available.
Sample Time: 3 ~ 5 days
Payment Terms:
30% deposit by T/T or Western Union, to confirm the order and start production,
Balance should be arranged before the delivery.
Packing: 1 pcs / polybag; Carton/Pallet
