Two - Parts Brass Cable Gripper Nickel Color , Side Cable Exit Gripper
Two - Parts Brass Cable Grippers Nickel Color , Cable Side Exit Gripper With Security Cap
Brass Cable Grippers are unique, self-locking, completely adjustable devices,
designed to securely lock onto a large range of 7×7 and 7×19 stranded aircraft cables.
This brass cable gripper is plated in nickel finishing,with a security cap,
It is suited to indoor applications with small diameter wires 1.0~1.5mm.
Other sizes and styles can be supplied as well,
Contact us for your requirements,or send us your drawing for OEM.
This cable gripper features a safety lock to provide extra security.
* Safe, reliable and compliant
* Time-saving
* Simple one hand use without tools
* Infinitely adjustable
Description
| 1. Material | Brass |

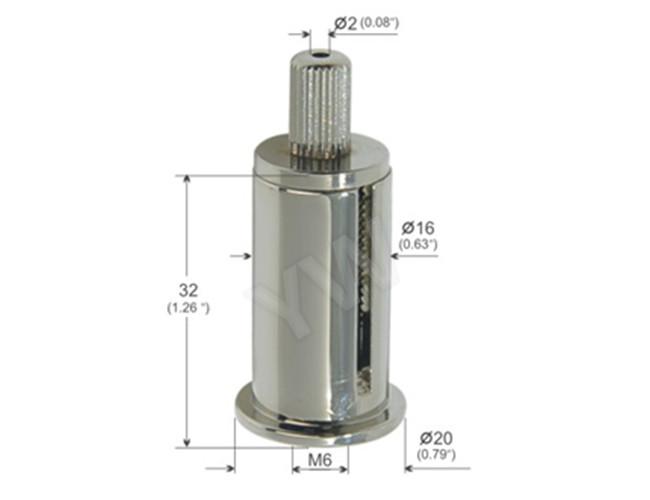

| 2. Size | Φ16*32mm / Customized |
| 3. For use with Cable | Ø1.0~Ø1.5mm |
| 4. Finishing Color |
Chrome / Nickel / Customized |
|
5. Application |
With our many Cable Gripper styles you can hang anything: Drop Ceilings, Light Fixture Pendants, Signs, Displays, Shelves, Picture Frames and more.
|
| 6. Safe Working Load | 40KG,depends on the cable diamter work with |
| 7.How It Works
|
Brass Cable Grippers are sophisticated in design but simple to use: Insert the cable into the plunger and slide the gripper to the desired position. Where it stops it locks.To re-adjust, simply depress the plunger with your fingertip and move the gripper to a new position. Release the plunger to lock.
While there is any weight at all on the gripper, the plunger cannot be depressed.An optional “safety nut” or “safety cap” can be added to completely lock the mechanism in both directions. The greater the weight, the stronger it grips. |
Cable Gripper Design
Within each cable gripper is a plunger that a cable slides through.
There are three balls that surround the outside diameter of the cable
as it passes through the gripper. When weight is applied to the gripper
when mounted, the tension forces the balls to grab the cable in a pinching
movement. In normal operation the more the tension, the more the gripping.
Some grippers come with a safety nut that locks the movement in both directions
eliminating the potential for a release if the plunger is accidentally depressed by an end user.
FAQ
Lead Time:
Lead times will vary depending on the items and quantities on order.
Normal lead time is 10~15 business days. Please check with the sales team.
