Cable Side Exit Aircraft Cable Grippers Nickel Plated With Safety Nut
Cable Side Exit Aircraft Cable Grippers Nickel Plated With Safety Nut
This Adjustable Cable Gripper has a security nut,
It is made from brass,plated in Nickel color.
Chrome color,as well as Black and White finish is available too.

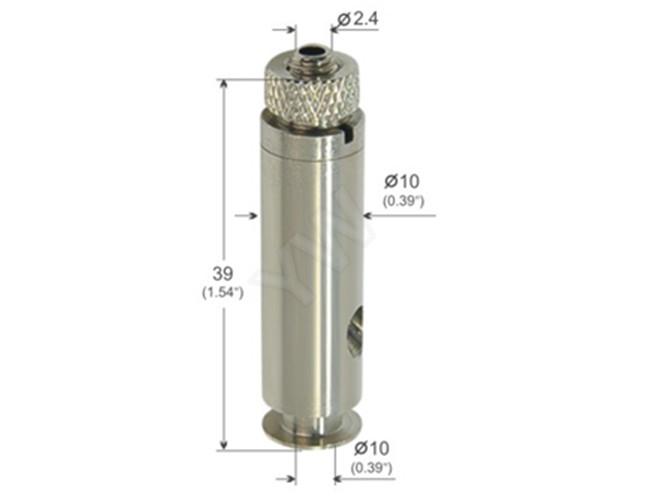

The overall size is Φ10*39mm,and can be customized too.
It is suited to indoor applications with diameter wires 1.0~2.0mm,
Contact us for your requirements,or send us your drawing for OEM.
A Gripper is a sophisticated piece of hardware that allows an electrician to adjust the height
of a fixture without utilizing tools. As a cable slides through the gripper a plunger and three
balls within the gripper surround the outside diameter and catch the cable as it passes through
the gripper. When mounted and weight is applied to the gripper, the tension forces the balls to
grab the cable in a pinching movement.
Description
| 1. Item Name | Φ10mm Aircraft Cable Grippers |
| 2. Material | Brass |
| 3. Size | Φ10*39mm / Customized |
| 4. Thread Size | No Thread,with a security nut |
| 5. Plunger Diameter | Φ2.0mm |
| 6. For use with Cable | Ø1.0~Ø2.0mm |
| 7. Finishing Color | Nickel,or Customized |
| 8. Application |
The Aircraft Cable Grippers help to provide the ideal suspension solution for sorts of different objects,such as heating,ventilation and air conditioning (HVAC),mechanical and electrical, lighting, acoustics and signage. |
| 9. Safe Working Load | 50KG,depends on the cable diamter work with(For reference only) |
| 10. Advantages |
1.The aircraft cable grippers offer a secure and elegant solution for any fine art installation,as well as Lighting Products, Signs,Dispalys, Graphics and many other items; 2. Radically reducing installation time and eliminating human error; 3. Easy to adjust cable length,easy to release. 4. Low cost and competitively priced for use in industrial and architectural lighting applications; 5. Perfect for Suspend Signage + Lighting Systems + Suspended Fixtures; 6. Supplied as Gripper Only or Gripper with Cables in different length. |
Our Standard Grippers are able to mount directly to walls, floors and ceilings.
This product is made from nickel plated steel and features a pressure release
mechanism to build a strong display system.
This gripper features a safety lock to provide extra security.
Advantages
* Safe, reliable and compliant
* Time-saving
* Simple one hand use without tools
* Infinitely adjustable
Used extensively throughout the building, architectural, lighting and agricultural sectors,
Suspension Kits with adjustable cable grippers are the perfect alternative to the
traditional threaded rod solution and are engineered with simplicity in mind,
allowing for significant savings in time and labour during installation.
