Y Shape Stainless Wire Light Hanging Kit With Brass Cable Grippers

A good flexible suspension kit, with a simple and effective

method of changing luminaire height and leveling.

Our easy to use suspension kit systems allow for almost any luminaire design to be suspended quickly and easily, allowing for creative lighting designs to be achieved.

· Flexible suspension kits

· Simple and effective method of changing luminaire height and levelling

· Complete assembly is available from one source

· Long-lasting quality

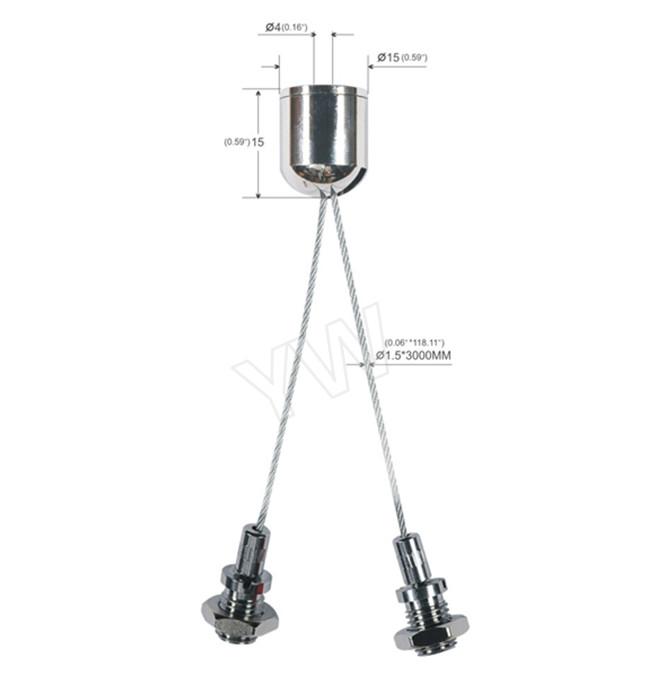

This Y Type Light hanging kit contains the comopents  as following:

1. 304 Stainless Steel Wire;

Size:Ø1.5*3000mm

2. Cable Grippers made from brass material with Chrome plated;

Size:Ø10*17mm

M8 external thread,and a safety lock

3.Ceiling Attachment;

Material:Brass plated in Chrome

Size:Ø15*15mm

Description

1. Material:Brass+Stainless Steel Wire

2. Size:Same as the drawing

3. Cable Diameter and Length:Ø1.5*3000mm;Or Customize

4. Finishing Color:Chrome;Or Customize

5. Application:

These various fittings and sets are also available as individual components -

ideal for contractors such as builders, shopfitters, electricians, sign installation

companies or acoustic ceiling installers.

6. Safe Working Load:30KG(Fore reference only)

7. Content:

Two Chrome Cable Grippers,adjust the cable length;

One Ceiling attachment fixed to ceiling;

One 304 Stainless Steel wire with diecast end

Confused about how to select your hanging system?

1. Choose a Suspension Point
Your system can be ceiling or wall mounted, with applications

hanging freely or tensioned between two fixed points;

2. Pick a Cable
Our stainless steel aircraft cable comes in several diameters

and lengths ranging from 1.0mm~3.0mm;

3. Select a Gripper
A range of designs and options, all with self gripping technology,

offer a secure and elegant solution for any fine art installation.

IMPORTANT :

It is essential to check that the top ceiling fixings are strong enough to take the

weight of the items being displayed, while allowing for the tension in the cables.

Affix the ceiling attachment to ceiling:

- for wooden ceilings use a wood screw.

- for cavity ceilings use a spring toggle bolt.

- for solid ceilings use a rawl plug and screw.
