Flexible Cable Suspension Kits 1 / 16 ″ Stainless Steel With Diecast End

What does this suspension kit contains?

1. 304 Stainless Steel Wire with diecast end;

Main Cable Size : Ø0.06″ *78.74″ / (Ø1.5mm*2000mm)

Y - Cable Size : Ø0.06″ *15.75″ / (Ø1.5mm *400mm)

Diecast End Size : 0.31″ *0.24″ / (6mm * 8mm)

2. Cable Gripper made from brass material with Nickel plated;

Size : Ø0.35″ *1.1″ / (Ø9*28mm)

3.Ceiling Attachment;

Material : Brass plated in Nickel

Size : Ø0.79″ *0.87″ / (Ø20*22mm)

Description

1. Material:Brass+Stainless Steel Wire

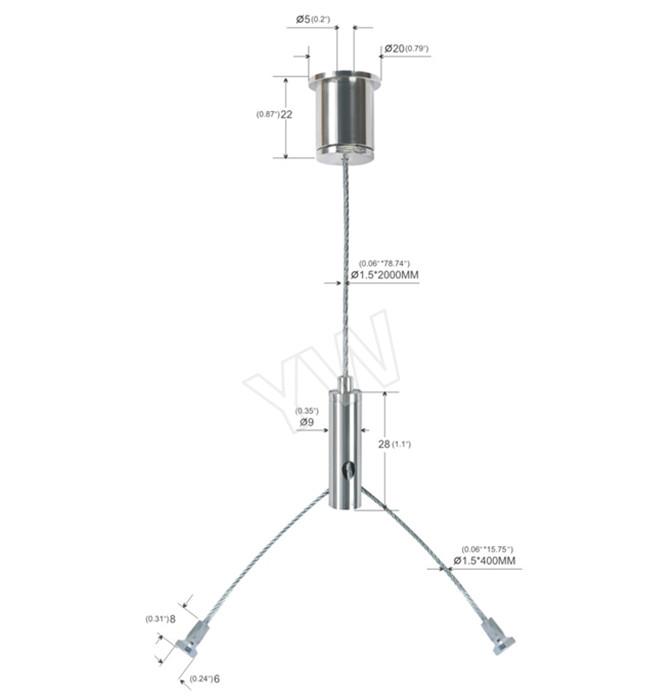

2. Size:Same as the drawing

3. Cable Diameter and Length:Ø1.5*2000mm;Or Customize

4. Finishing Color:Nickel;Or Customize

5. Application:

Perfect for the Hanging Graphic Displays,as well as Suspend Signage,

Lighting Systems ,Suspended Fixtures and so on.

6. Safe Working Load:30KG(Fore reference only)

7. Content:

One Nickel plated Cable Gripper,adjust the cable length;

One Ceiling attachment fixed to ceiling;

One 304 Stainless Steel wire with diecast end

Confused about how to select your art hanging system?

1. Choose a Suspension Point
Your system can be ceiling or wall mounted, with applications

hanging freely or tensioned between two fixed points;

2. Pick a Cable
Our stainless steel aircraft cable comes in several diameters

and lengths ranging from 1.0mm~3.0mm;

3. Select a Gripper
A range of designs and options, all with self gripping technology,

offer a secure and elegant solution for any fine art installation.

The ceiling suspension kit is easily fitted to a ceiling or underneath any horizontal surface,

using the screw and plug kit provided (depending on the surface). You must ensure that the

surface you are screwing into is capable of holding the weight of the item you are intending to hang.

IMPORTANT: It is essential to check that the top ceiling fixings are strong enough to take the

weight of the items being displayed, while allowing for the tension in the cables.

Advantages:

*  Fast and easy to suspend lighting fixtures during the installation;

*  Designed for the suspension of surface light fittings,

suitable for use with a large range of commercial lighting;

*  No tools needed to adjust cable length,

up or down,down or up – as often as you like;

*  Time-Saving:Allows quick installation and instant adjustment;

*  The finest way to suspend lighting fixtures available;
