Φ 9 *32 Mm Lock Cable Grippers Brass Plated Material For 1.5 Mm Steel Wire
Φ 9 *32 mm Lock Cable Grippers Brass Plated Material For 1.5 mm Steel Wire
Cable exits out the side of gripper.
Bottom of gripper is a M3 tapped thread,

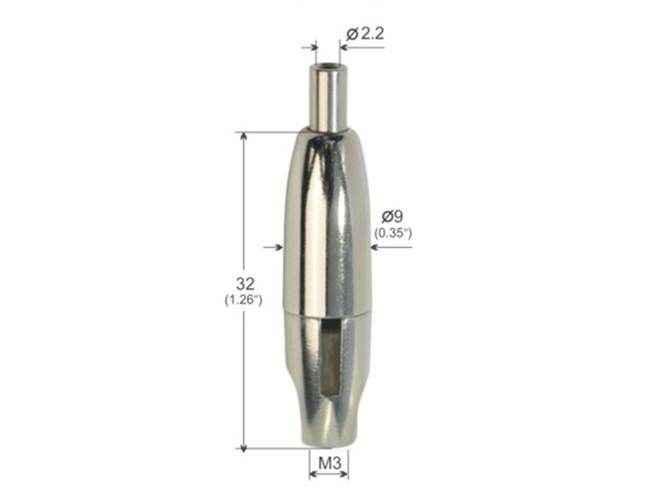

The size is Φ9*32mm,and can be customized too.
Description
| 1. Item Name | Φ9mm Cable Gripper With M3 Thread |
| 2. Material | Brass |
| 3. Size | Φ9*32mm / Customized |
| 4. Thread Size | M3 Female Thread |
| 5. Plunger Diameter | Φ2.2mm |
| 6. For use with Cable | Ø1.0~Ø1.5mm |
| 7. Finishing Color | Nickel,or Customized |
| 8. Application |
It is perfect for Hanging Graphic Displays, Suspend Signage , Lighting Systems , Suspended Fixtures and other objects. |
| 9. Safe Working Load | 50KG,depends on the cable diamter work with(For reference only) |
| 10. Advantages |
1. The Lock Cable Grippers help to provide the ideal suspension solution for sorts of different objects,such as heating,ventilation and air conditioning (HVAC),mechanical and electrical, lighting, acoustics and signage.
2. They prove very easy to use, they have a unique clutch braking mechanism that grips within the gripper, thus creating a very easy, practical, simple system that can be used time-and-time again!
3. What is the most important,they require no tools to adjust, up or down, down or up – as often as you like.
|
How It Works
Lock Cable Grippers are sophisticated in design but simple to use:
Insert the cable into the plunger and slide the gripper to the desired position.
Where it stops it locks.To re-adjust, simply depress the plunger with your fingertip
and move the gripper to a new position. Release the plunger to lock.
The 3--ball gripping mechanism is spring-loaded and allows the gripper to move
freely up the cable. It cannot move down unless the plunger is depressed.
While there is any weight at all on the gripper, the plunger cannot be depressed.
An optional “safety nut” or “safety cap” can be added to completely lock the mechanism
in both directions. The greater the weight, the stronger it grips.
If you have a project that involves unusually sloped, curved or high ceilings, our aircraft cable gripper system may be the solution for you. It is affordable, flexible and easy to install.
To find out more about this more solutions for your hanging system,
Please feel free to contact our sales team.
Advantages
* Safe, reliable and compliant
* Time-saving
* Simple one hand use without tools
* Infinitely adjustable
