Brass Material Lock Cable Grippers With Safety Nut , Adjustable Gripper Hanger

We offers several grippers in different diameters and screw sizes.

They can be repositioned without damaging the cable and no tools are necessary. Just unscrew the head, push and slide it.One hand is sufficient : the grippers are installed wholly without tools and are infinitely adjustable

Cable Grippers are sophisticated in design but simple to use to hang your

pictures or fine art. Here’s how it works:

Insert the cable into the plunger and slide the gripper to the desired position. Where it stops it locks.

To re-adjust, simply depress the plunger with your fingertip and move the gripper to a new position. Release the plunger to lock.

The 3-ball gripping mechanism is spring-loaded and allows the gripper to move

freely up the cable. It cannot move down unless the plunger is depressed.

While there is any weight at all on the gripper, the plunger cannot be depressed.

An optional “safety nut” or “safety cap” can be added to completely lock the mechanism

in both directions. The Greater The Weight, The Stronger It Grips.

Description

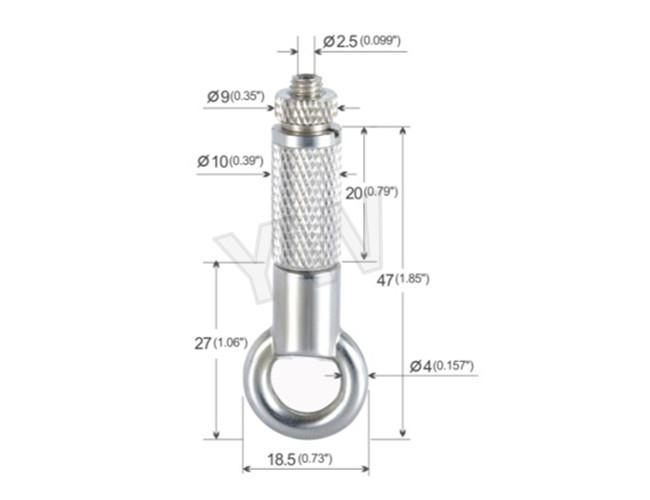

Cable Gripper Design

Within each cable gripper is a plunger that a cable slides through. There are three balls that

surround the outside diameter of the cable as it passes through the gripper. When weight is

applied to the gripper when mounted, the tension forces the balls to grab the cable in a pinching movement. In normal operation the more the tension, the more the gripping. Some grippers come

with a safety nut that locks the movement in both directions eliminating the potential for a release

if the plunger is accidentally depressed by an end user.
