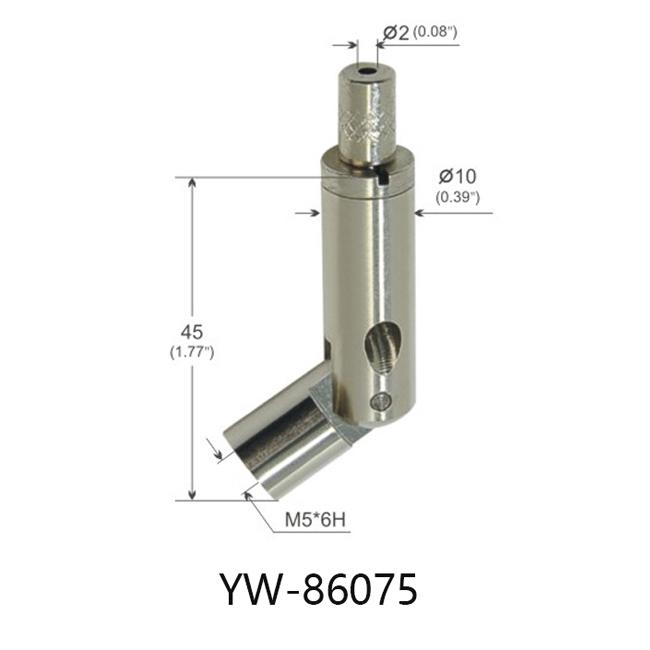

Hanging Adjustable Stainless Steel Wire Rope Gripper Copper Metal Swing YW86075

Hanging Adjustable Stainless Steel Wire Rope Gripper Copper Metal Swing YW86075

Quick Details:

Advantages:


1. Adjustable Cable Grippers make installation quick and easy

2. Adjustable Cable Grippers can be infinitely adjusted

3. Adjustable Cable Grippers can be used to suspend signage, Lighting Systems, etc

4. Our cable blockers are extremely user-friendly and fast to install.

5. The cable blocking devices are used in demanding applications, for example in the automotive and hardware industry. Recommended weights for devices vary from 7 to 100 kilograms, so the stronger cable blockers can hold even heavy loads of lighting equipment. Cable’s diameter varies from 1,2 to 2,5 millimeters.

Descriptions:


Our Brass Cable Grippers are mostly used in housing fits into lighting fixtures, signs, suspended ceilings, and many more different applications. It provides instant toolless height adjustment for drop ceilings, light fixtures, displays, signs. Our various coupler and cable gripper styles allow for a vast number of hanging installation selections.

Within each cable, the gripper is a plunger that a cable slides through. There are three balls that surround the outside diameter of the cable as it passes through the gripper. When weight is applied to the gripper when mounted, the tension forces the balls to grab the cable in a pinching movement. In normal operation the more the tension, the more the gripping. Some grippers come with a safety nut that locks the movement in both directions eliminating the potential for a release if the plunger is accidentally depressed by an end-user.

The Self-Gripping cable safety hook provides an extra layer of security and is ideal for high-traffic areas. This art hanging system with a safety lock is one of the most secure means of hanging art when using cables and assures that your picture will not detach from your painting.

Application:


Used extensively throughout the building, architectural, lighting, and agricultural sectors,

Materials & Finishes:

Cable Grippers are made of nickel&Chrome-plated brass with a few exceptions. Internal mechanisms are comprised of brass and stainless steel. Grippers are also available in a black zinc finish,satin-chrome. Other finishes are available upon request. Some of the other items are made of anodized aluminum and come in several colors.
