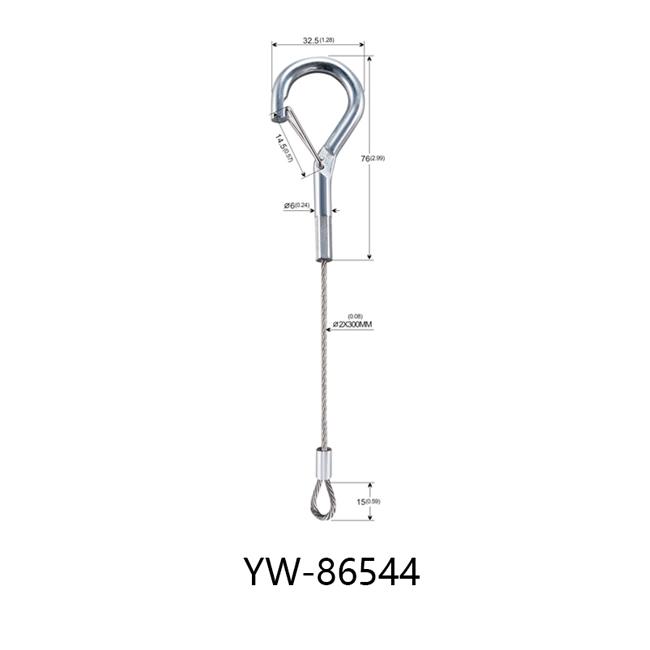

Loop And 32.5*76mm Die-Cast Hook Fitting Steel Wire Rope Cable With YW8654

Features:

1. Wire rope and fittings are stocked at our facility

2. Standard and custom designs are created per your requirements
3. Wire rope is cut to length and fittings are swedged on using one of our hydraulic presses
4. Connection hardware conforms to all industry specifications

5. You can choose from cable fittings such as copper or aluminum sleeves, stamped eyelets, balls, threaded studs, shank type eyes, forks, and more.

Specification:

Description:

• Wire rope assemblies are completed cable systems that involve the cable or cables as well as any fittings in the form of additional hardware or rope termination techniques.
• Wire ropes are used in a range of industries such as mining, oil rigging, bridge construction, marine, aerospace, transportation, and material handling among others that require various heavy-duty lifting applications.
• Wire assemblies are also useful in motion control and machine automation applications for not only lifting but pulling and support as well. Wire rope assemblies allow for the incorporation of wire cables into machinery or other equipment for use improving connectivity and versatility and to prevent damage, such as fraying, to the rope mechanisms.
• Wire rope slings are used extensively within the industrial lifting industry. Wire rope slings, sometimes referred to as wire cable slings are more robust and durable than nylon slings and have higher temperature limits. There are many different types of wire rope slings and they all have their own purposes. For instance, the normal sling strength is based on the strength of the wire rope used in the sling. A sling angle is an angle measured between a horizontal line and the sling leg or body

Material and construction options:

Cable Material:  galvanized steel or stainless-steel lanyards.

Cable Construction: typically these assemblies are made of 7 x 19 (most flexible), 7 x 7, or 1 x 19 (least flexible) cables

Flexibility comparison:

1*7 None Flexible
1*19 Very None Flexible

7*7 Flexible
7*19 Very Flexible

Application:

* Promotional displays (hanging of signs)

* Hardshell cases (lid restraint)

* Display cases (lid restraint, shelf support)

* Retail Security (security cable for electronics, clothes, expensive manuals, etc.)

* Lighting fixture and other hanging systems that easily drop.

About us:

We have numerous capabilities that allow us to meet your specific needs and be the industry leader for custom cable assemblies.

* CNC Machining Capabilities—Yingwei has the capability to quickly make custom component parts to meet a variety of customers’ needs.

* Tensile Testing—All tensile testing is done in-house at our facility. Our quality department can provide a material cert with the shipment if you need.

* Swaging—Yingwei’s manufacturing facility offers various size swaging machines to meet your diameter requirements.

* Electric Cutting—Automatic fuse cutting enables Yingwei to achieve precise length requirements while eliminating any frayed ends.
