Stainless Steel / Brass Wire cable Gripper With Grooved Track Light Using YW86083
Wire Gripper Brass / Stainless Steel With Grooved For Track Light YW86083
Quick Details:
| Material | Copper / Stainless steel | Type | T - Type |

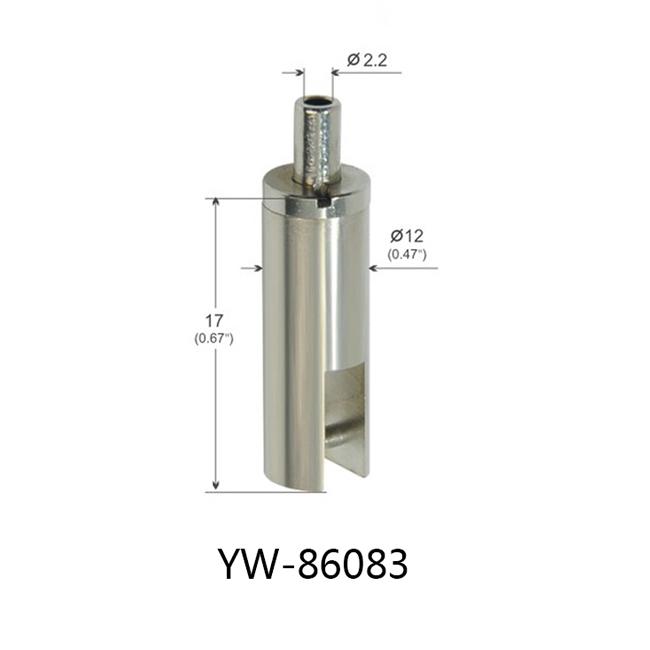

| Suit for wire dia. | ∅1 - ∅1.5 mm | Size | ∅ 12*17mm |
| Surface treatment | Satin Silver/ Chrome, etc. | MOQ | 1000pcs |
| Breaking load | 90kg | Sample | Free sample available, customer pay the express freight |
| Delivery time | 8-15 workdays | Application | Billboards, Led light, Display |
Descriptions:
* Body: holds the locking mechanism inside, has an angled conic shape in the cable-in orifice to ease insertion of cable.
* Locking spheres: 3 spheres arranged in a triangular pattern that will hold the cable in place via pressure.
* Wedge or bush: transfers the pressure of the spring to the spheres.
* Spring: Stainless steel, made of wire 0.3 mm diameter, both ends closed has a controlled constant.
Advantages:
- This gripper is used for griping the return ends of wire rope. The offered gripper is also used during the lifting of goods and heavy items. The provided gripper is manufactured by our skilled professionals by utilizing optimum grade brass at modern premises. Available in varied specifications, this Brass Wire Rope Gripper can be bought at market-leading prices from us.
- With the aid of sophisticated techniques, this blocker is manufactured using quality approved brass by our ingenious professionals. We are offering this blocker to the patrons in varied dimensions within the committed time period. The provided Brass Cable Blocker is used for fitting wires and cables firmly.
Application:
* Acoustics, Display, Exhibition, Room divider, Decoration…Everything that hangs from the ceiling or the wall should use our Suspension Systems.
* Cable gripper that allows adjusting the height of a fixture without utilizing tools
* Compact designed grippers allow swift installation and instant adjustment.
* Attachments are used to fix the cables to ceilings, walls, or floors.
* Stainless steel and zinc-plated cables are available in various dimensions and lengths.
WARNING
Do not place pendant fixtures in moving-air environments unless they are laterally/seismically braced. Continuous oscillation may cause metal fatigue in the cabling systems, leading to cable failure.
Grippers & couplers work best when cable follows their centerline. Avoid angled pulls in excess of 5°.
For angled applications use one of our jointed grippers or our sloped ceiling couplers.
