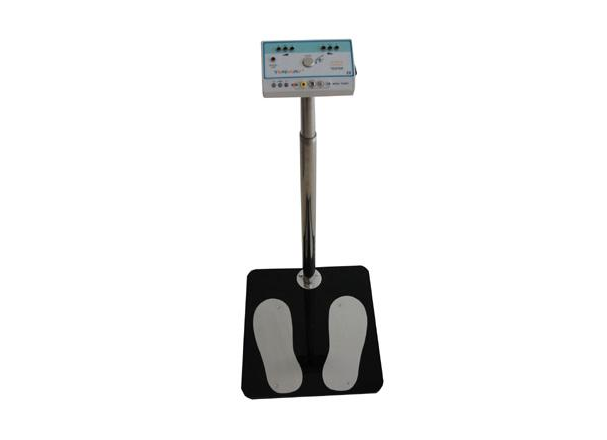

OEM / ODM Anti Static Equipment Double Foot Human Body Comprehensive Tester
ESD Personal Grounding Test Station Human Body Comprehensive Tester
The product can test human body and will alarm when hunman body resistance above 750KΩ or below 10^5Ω, the tester equip 750KΩ-10MΩ(used to test wrist strap) and 750KΩ-100MΩ(used to test working shoes), this product is the ideal device to test wrist and working shoes. The test instrument combines a unique dual test circuit design, not only can improve the test speed, but also can replace a single wrist band test instrument.
| Instrument size | 142.5(L)×82(W)×39(H)mm |
| Bracket size | 400(L)×250(W)×800(H)mm |
| Pedal size | 400(L)×450(W)mm |
| Tester net weight | 5.5kg |
| Height adjustment range of test instrument | 900-1470mm |
Halfer SURPA is designed to test the general resistance(including resistace of the human body, wrist band and shoes) of human body.Using visual light emitting diode to display.
