Colorful Anti Static Mat / ESD Table Mat With Excellent Grounding Properties

Excellent Grounding Properties ESD Anti Static Rubber Table Mats

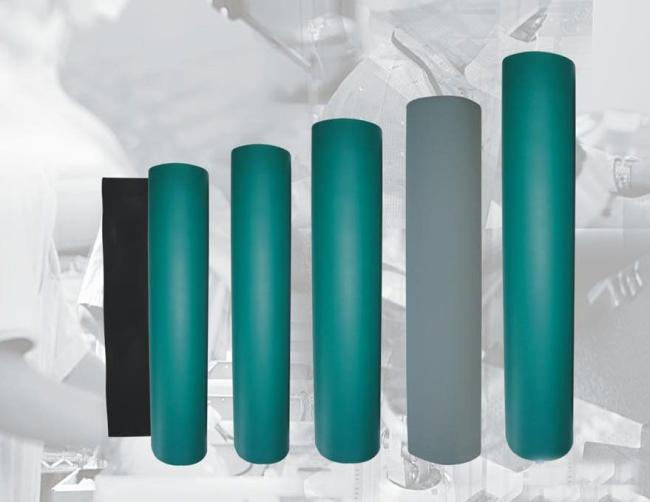

ouble layer rubber table mat with excellent grounding properties, available in different colors and in complete rolls or pre-cut.

Physical properties :

Elongation : 188%

elastic resilience : 14%

tearing strength: 20.6KN/m

Tensile strength: 3.6Mpa

Thickness : 2.0mm

Heat resistance: No soldering resistance

Electrical properties :

Resistant to ground : <3.5x10e7Ω

Surface resistance : <1.0x10e10Ω

Compliant to : IEC 61340-5-1

ESD Table Mats (also called Antistatic Table Mats) are made of two layers of polyvinyl chloride foam surrounding a layer of conductive fleece to form an expanded static-dissipative work surface. Our high-quality dissipative mats are designed to harmlessly drain charges from personnel, circulation boxes, bags, components, etc.
