Round Tube Bolt Connection Fuse RS309-MM

The company's business philosophy is to continue to create value for customers, continue to optimize front-end marketing and logistics support team, as the industry supply chain professional partners. Provide value-added services such as requirements creation, solutions, technical support, warehousing, logistics and e-commerce. Meet customer requirements of original equipment manufacturers, original design manufacturers, electronic manufacturing service providers and small and medium enterprises. In order to better serve customer of Lun Lun company, Zhuo Lun has set up branch and office in China, Hongkong, China, Southern China, central China, East China and so on. Welcome to inquire and cooperate.

Product Presentation

RS309-MM
● Rated voltage: AC/DC1000V
● Rated current: 5A ～ 800A
● Use category: AR
● Division capacity: AC100KA, DC50KA (time constant ≤15ms)
● Performance conforms to IEC60269; security and application environment reliability conforms to ISO8820, GB/T 31465
● Pass the CE certification, in line with the ROHS instruction

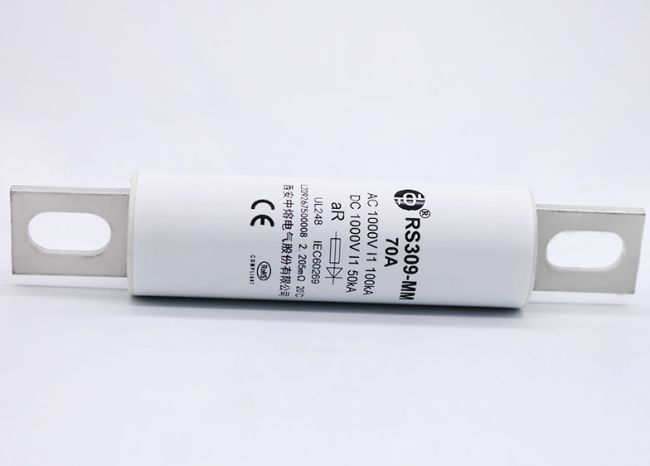

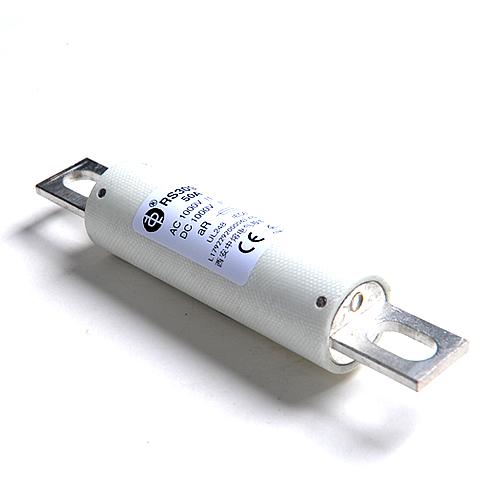

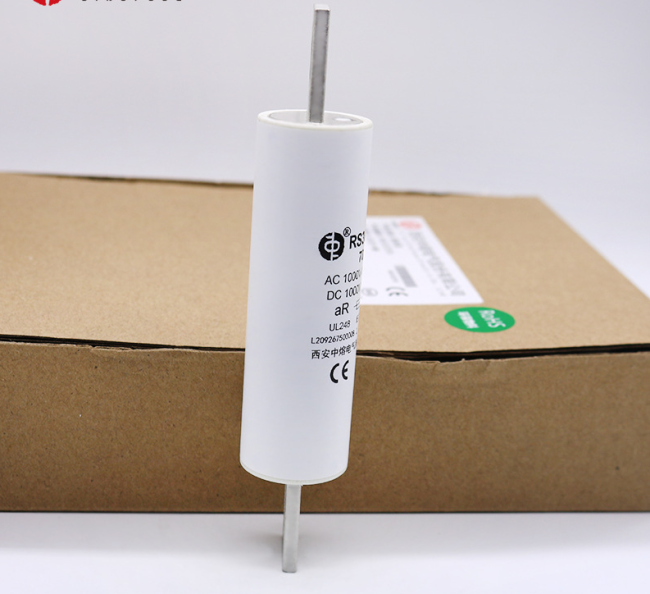

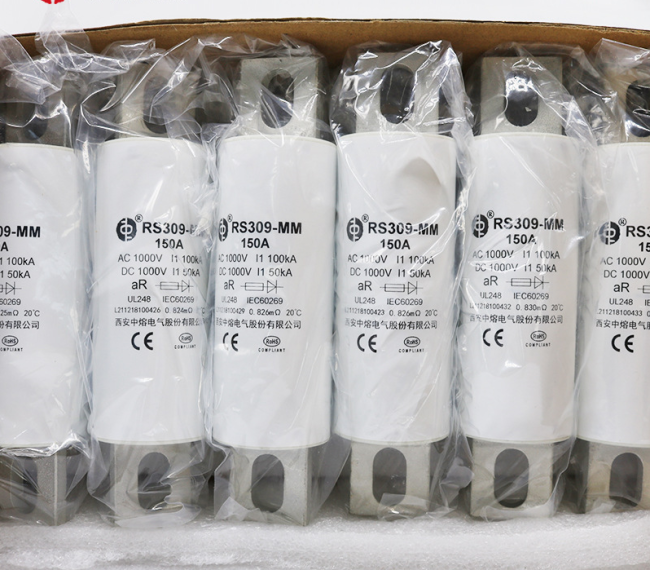

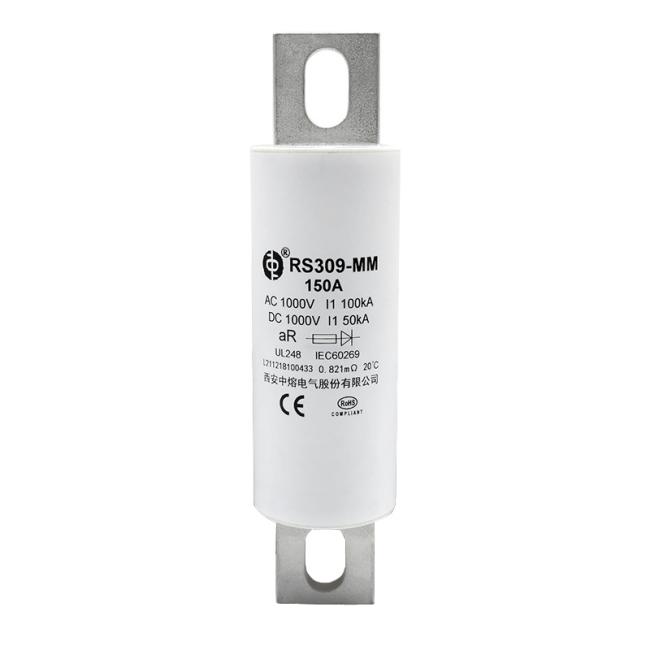

This product is a round tube bolt connection fuse. It has the characteristics of small volume, low melting I 2 T value, high division ability, anti -current impact; high strength tolerance
Mechanical vibration and impact, wide temperature range impact, more chemical load, suitable for the application of the road vehicle industry. Can be used for electric vehicle driving power systems and merits
Rate transformation system, energy storage and power system, frequency conversion controller, charger, wire and other vehicle devices and equipment short circuit, overload, and backup protection.

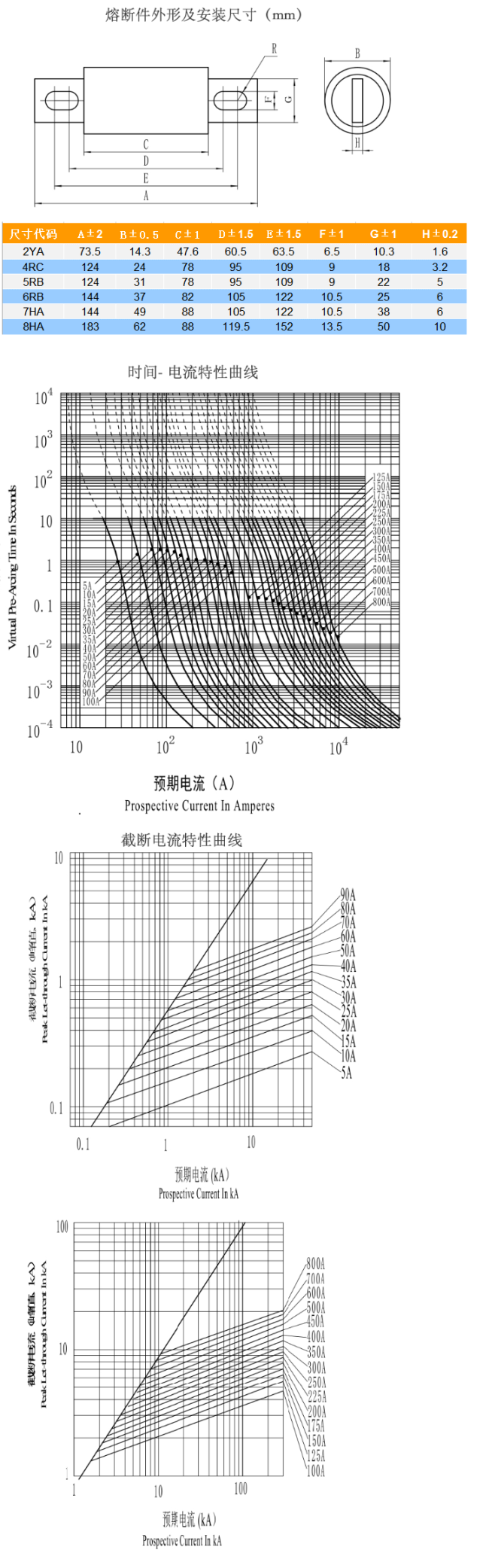

Note: All the test data in this specification book are measured in a DC environment, time constant (expected test current i≥20ka, 10-15MS; expected test test

Current I <20KA, take 0.5*i 0.3) and the wiring method refer to IEC60269/UL248.
