160-400A 1500VDC Solar PV Fuse Bolt Type Photovoltaic Low Arc Voltage gPV000
PV FUSE Bolt Type Photovoltaic Low Arc Voltage, gPV000 160-400V 1500VDC , Protect And Isolate The Photovolta
| Basic product information | |||
| Made in China | GPV000 series | ||
| ● Rated voltage: DC1500V ●Rated current:160~400A ● Category of use: gPV |
GPV000 160~400A | ||
| ● Breaking capacity: DC 50kA(L/R:1~3ms) ●Structure, performance reference: GB13539/IEC60269 ●CE ,TUV, Comply with EU and China RoHS directive |
|||
|
This product is a bolt type full range of photovoltaic protection fuse, with Low arc voltage, low power consumption, high breaking ability and so on. protection And insulate photovoltaic cell modules or arrays, as well as protect others to fit The circuit system of.
|
|||
| Gpv series | |||
| NO: gpv000 | |||
| Size:59*59*124mm Rated current:160~400A | |||
| Power consumption: 58W~106W | Rated voltage:1500VDC | ||
| Note: Mounting mode: M10 bolts, nuts recommended torque:21N.m | |||
Road Vehicle Round Tube Bolt Connectors gpv000 160~400A 1500VDC EVS

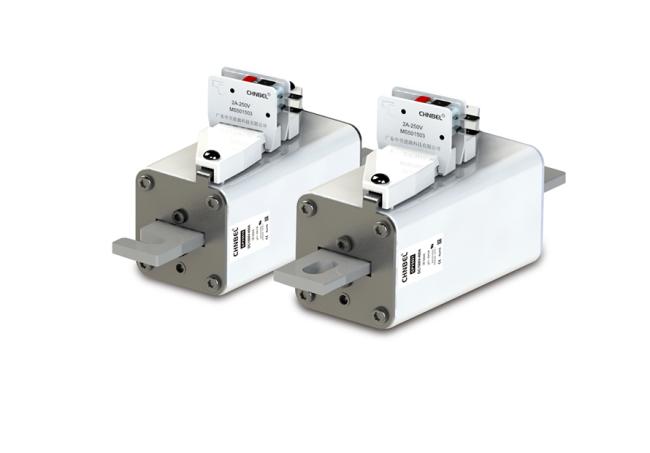

Product Presentation
gPV000 160~400A 1500VDC
Ceramic Automotive Fuses,New energy vehicles refer to vehicles that adopt unconventional vehicle fuel as a power source (or use conventional vehicle fuel and adopt new on-board power devices), integrate advanced technology in power control and drive of vehicles, and form vehicles with advanced technical principles, new technology and new structure. New energy vehicles include pure electric vehicles, extended-range electric vehicles, hybrid electric vehicles, fuel cell electric vehicles, hydrogen engine vehicles, other new energy vehicles, etc.
