63Vdc Electric Vehicle Fuse 6*32mm 3KA With High Current Rating
Product Description:
Our Electric Vehicle Fuse is specially designed for automotive battery charger, EV DC fast charger and home EV charger for Electric Car. The temperature range of this product is from -40℃ to 125℃, and comes in a carton box package. It is rated voltage of 63VDC, 100VDC and 125VDC, and has a breaking capacity of 63Vdc/8kA*100Vdc/6KA*125Vdc/3KA. Its size is 6*32mm, and it can bring leads.
- Product Name: Electric Vehicle Fuse
- Apply to: Automobiles, Batteries, Electrical Machinery, Ships, Motorcycles, Equipment, And Other Products
- Recommended Tight Torque: M6: 5-5.5N·m ; M5: 3.5-4N·m
- Rated Current: 50A 60A 80A 100A 150A 200A 250A 300A 250A
- Material: Silver Plate,Copper,Ceramic, Quartz Sand
- AC Ev Charger Adapter Compatible
- Automotive battery charger Compatible

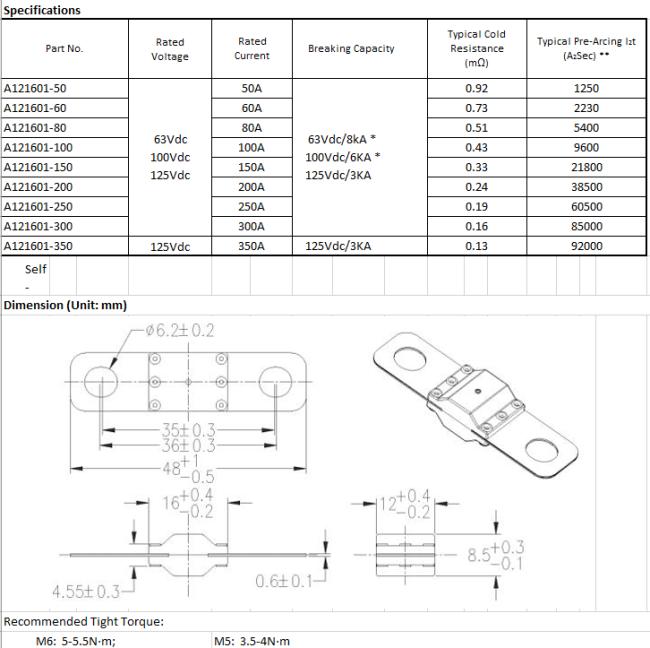

Technical Parameters:
| Parameter | Details |
|---|---|
| Net | 15g |
| Application | Automotive,Motorcycles, Power Tools, Ships, Electrical Equipment, Industrial Equipment, Medical Equipment |
| Recommended Tight Torque | M6: 5-5.5N·m ; M5: 3.5-4N·m |
| Rated Voltage | 63VDC 100VDC 125VDC |
| Package | Carton Box |
| Rated Current | 50A 60A 80A 100A 150A 200A 250A 300A 250A |
| Size | 6*32mm, Can Bring Leads |
| Temperature Range | -40℃~125℃ |
| Appearance features | Mall Size With High Current Rating For Short Circuit Protection |
| Material | Silver Plate,Copper,Ceramic, Quartz Sand, |
| Special Features | Electric Vehicle Fast Charging , AC Ev Charger Adapter Compatible, EV DC fast charger |
Applications:
JULUN Electric Vehicle Fuse A121601 50~350A 125VDC is a high-performance short circuit protection device with mall size and high current rating. It is widely applied in Automotive, Motorcycles, Power Tools, Ships, Electrical Equipment, Industrial Equipment, Medical Equipment, and other equipment which require DC fast charger, AC Ev Charger Adapter Compatible, DC Electric Car Charging Cable, Electric Vehicle Fuse.
This product has CE UL CCC certifications and is manufactured according to strict quality control standards. The minimum order quantity is 100, and the price ranges from 3-6USD per unit. The net weight of each unit is 15g. The package includes a carton and the delivery time is 2-4 weeks. The payment terms are T-T. The recommended tight torque of M6 is 5-5.5N·m and the recommended tight torque of M5 is 3.5-4N·m. The breaking capacity is 63Vdc/8kA * 100Vdc/6KA * 125Vdc/3KA.
JULUN Electric Vehicle Fuse A121601 50~350A 125VDC has a supply ability of 1000K/PCS. It is an ideal choice for a wide range of applications that require a reliable and durable short circuit protection.
Customization:
Electric Vehicle Fuse - JULUN A121601 50~350A 125VDC
- Brand Name: JULUN
- Model Number: A121601 50~350A 125VDC
- Place of Origin: China
- Certification: CE UL CCC
- Minimum Order Quantity: 100
- Price: 3~6USD
- Packaging Details: Carton
- Delivery Time: 2~4weeks
- Payment Terms: T-T
- Supply Ability: 1000K/PCS
- Certificate: RoHS Compliant And Lead Free
- Rated Voltage: 63VDC 100VDC 125VDC
- Material: Silver Plate,Copper,Ceramic, Quartz Sand
- Application: Automotive,Motorcycles, Power Tools, Ships, Electrical Equipment, Industrial Equipment, Medical Equipment
- Package: Carton Box
Features:
- Ideal for DC Electric Car Charging, CCS EV Charger, DC Electric Car Charging Fuse.
- High quality and reliable, RoHS Compliant And Lead Free.
- Rated Voltage up to 125VDC.
- Quick delivery time.
