A202001-300A 150VDC Ceramic Automotive Fuses with Electric Current 100A 150A 200A 250A 300A 350A 400A 500A and Hole Distance 39mm
Product Description:
Measuring 20*55mm in size, our Ceramic Automotive Fuses are the perfect fit for a wide range of automotive applications. With a hole distance of 39mm and a recommended tight torque of 11-13N·m for M8, installation is quick and easy using the included screw bolt mounting method.
Our Ceramic Automotive Fuses are designed to break at a capacity of 20KA for currents between 100 and 350A, making them ideal for protecting your vehicle's electrical system. For higher currents of 400A and 500A, the fuses are designed to break at a capacity of 16~20KA, ensuring reliable protection in the event of a short circuit.
These Ceramic Automobile Fuses are made from high-quality ceramic materials, ensuring superior durability and long-lasting performance. With their reliable breaking capacity and easy installation, our fuses are the perfect choice for protecting your vehicle's electrical system.
Features:
- Product Name: Ceramic Automotive Fuses
- Mounting method: SCREW BOLT
- Rated voltage: 150VDC
- Material: Ceramic Copper Silver Quartz Sand Gold
- Electrical Characteristics: 1.0In >4 Hours 3.0In 10s Max.
- Hole distance: 39mm
These Ceramic Automotive Fuses are perfect for use in cars and automobiles. The SCREW BOLT mounting method ensures easy installation, and the fuses have a rated voltage of 150VDC. They are made of high-quality materials including ceramic, copper, silver, quartz sand, and gold. With electrical characteristics of 1.0In >4 Hours 3.0In 10s Max., these fuses are reliable and durable. The hole distance of 39mm makes them compatible with a wide range of vehicles. Protect your car's electrical system with these Ceramic Car Fuses today!

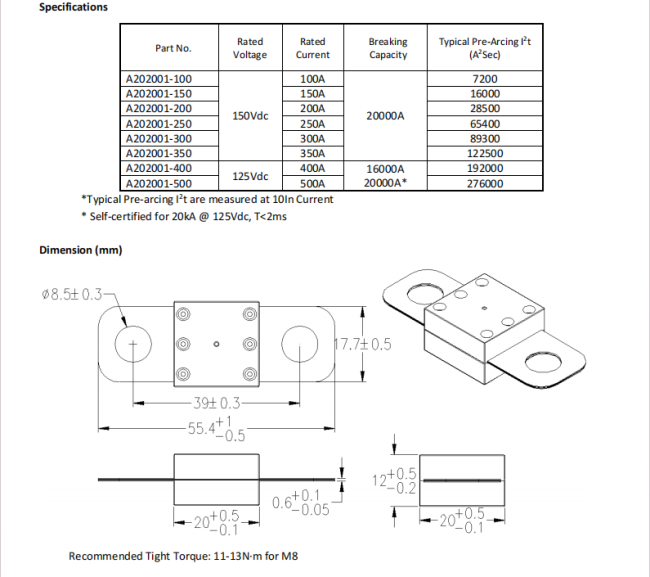

Technical Parameters:
| Parameter | Value |
|---|---|
| Product Name | Ceramic Automotive Fuses |
| Installation mode | Screw Bolt |
| Recommended Tight Torque | 11-13N·m For M8 |
| Feature | Small Size With High Current Rating For Short Circuit Protection |
| Electric current | 100A, 150A, 200A, 250A, 300A, 350A, 400A, 500A |
| SIZE | 20*55mm |
| Breaking capacity | 20KA(100~350A), 16~20KA (400A, 500A) |
| Voltage | 150VDC |
| Application product | EV Traction System, Power Conversion, Energy Storage, Car Charger And Etc. |
| Material | Ceramic, Copper, Silver, Quartz Sand, Gold |
| Rated voltage | 150VDC |
| Mounting method | Screw Bolt |
Applications:
The model number of these Ceramic Automobile Fuses is A202001, and they come in different amperages, including 100A, 150A, 200A, 250A, 300A, and 350A. They have a breaking capacity of 20KA (100~350A) and 16~20KA (400A, 500A), which means they can handle high current surges without blowing up.
These Ceramic Car Fuses have been certified by UL, which is a global safety consulting and certification company. This certification ensures that the fuses meet the safety standards set by the industry and are safe to use in your car, motorcycle, or battery.
The minimum order quantity for these Ceramic Automotive Fuses is 100, and they cost between 1.5~2USD per piece. They are packed in cartons and can be delivered within 2~4 weeks. The payment terms are T-T, and the supply ability is 1000K/PCS.
The size of these Ceramic Car Fuses is 20*55mm, and they can handle a voltage of up to 150VDC. They have excellent electrical characteristics, such as 1.0In >4 Hours and 3.0In 10s Max, which means they can withstand high current surges without blowing up.
These Ceramic Automotive Fuses are suitable for various application occasions and scenarios, such as:
- Automotive industry: These fuses are widely used in the automotive industry to protect the electrical system of cars, trucks, and motorcycles from damage caused by short circuits and overloads.
- Battery industry: These fuses are also used in the battery industry to protect batteries from overcharging and over-discharging, which can cause them to explode or catch fire.
- Industrial applications: These fuses can be used in various industrial applications, such as power supplies, inverters, and generators, to protect the equipment from damage caused by high current surges.
In conclusion, if you are looking for high-quality and reliable Ceramic Automobile Fuses, ASTM FUSE BATTERY AUTOMOBILE MOTORCYCEL FUSE is the right choice for you. These fuses are made of high-quality materials, have excellent electrical characteristics, and can protect your car, motorcycle, or battery from damage caused by excessive current flow.
Customization:
Support and Services:
The Ceramic Automotive Fuses product technical support and services include:
- Assistance with product selection and identification
- Product datasheets and specifications
- Installation and usage guidance
- Troubleshooting and problem-solving
- Warranty and returns support
- Customization options
- Product training and education
- Consultation with technical experts
Packing and Shipping:
Product Packaging:
- Quantity: 10 pieces per box
- Dimensions: 2 x 2 x 1 inches per fuse
- Weight: 0.5 lb per box
- Material: cardboard box
Shipping Information:
- Shipping Method: Standard ground shipping
- Shipping Cost: Calculated at checkout
- Estimated Delivery Time: 3-5 business days
- Shipping Restrictions: This product can only be shipped within the United States
FAQ:
Q: What is the brand name of the Ceramic Automotive Fuses?
A: The brand name of the Ceramic Automotive Fuses is ASTM FUSE BATTERY AUTOMOBILE MOTORCYCEL FUSE.
Q: What are the available models for the Ceramic Automotive Fuses?
A: The available models for the Ceramic Automotive Fuses are A202001 100A, 150A, 200A, 250A, 300A, and 350A.
Q: Where are the Ceramic Automotive Fuses manufactured?
A: The Ceramic Automotive Fuses are manufactured in China.
Q: Does the Ceramic Automotive Fuses have any certification?
A: Yes, the Ceramic Automotive Fuses are certified by UL.
Q: What is the minimum order quantity for the Ceramic Automotive Fuses?
A: The minimum order quantity for the Ceramic Automotive Fuses is 100 pieces.
Q: What is the price range for the Ceramic Automotive Fuses?
A: The price range for the Ceramic Automotive Fuses is between 1.5 to 2 USD.
Q: What are the packaging details for the Ceramic Automotive Fuses?
A: The packaging details for the Ceramic Automotive Fuses are cartons.
Q: What is the delivery time for the Ceramic Automotive Fuses?
A: The delivery time for the Ceramic Automotive Fuses is between 2 to 4 weeks.
Q: What are the payment terms for the Ceramic Automotive Fuses?
A: The payment terms for the Ceramic Automotive Fuses are T-T.
Q: What is the supply ability of the Ceramic Automotive Fuses?
A: The supply ability of the Ceramic Automotive Fuses is 1000K/PCS.
