Ceramic Automotive Fuses 40A Electric Vehicle Fuse 500VDC Hybrid Electric Vehicle Fuse
Ceramic Automotive Fuses 40A Electric Vehicle Fuse 500VDC Hybrid Electric Vehicle Fuse
General purpose fuse for EV/HEV
Stud-mount, optional for other installtion
500Vdc ideal for EV or HEV application
Excellent DC performance
Special designed fuse base for vehicle situation
| Electrical Characteristics | ||
| % of Ampere Rating (A) | Operating Time (Unit: s) | |
| Min | Max | |
| 200% | 1 | 300 |
| 300% | 0.2 | 30 |
| 500% | 0.1 | 10 |
| Ordering P/N | Rated Current (A) | rated Voltage/ Interrupting rating |
| HV150-5YY | 5 | 500Vdc/10000A |
| HV150-6YY | 6 | |
| HV150-8YY | 8 | |
| HV150-10YY | 10 | |
| HV150-15YY | 15 | |
| HV150-16YY | 16 | |
| HV150-20YY | 20 | |
| HV150-25YY | 25 | |
| HV150-30YY | 30 | |
| HV150-32YY | 32 | |
| HV150-35YY | 35 | 500Vdc/6000A |
| HV150-40YY | 40 | |
| HV150-50YY | 50 | 500Vdc/10000A |
Temperature Rise: <=50K with 70% of rated current
Assembly code

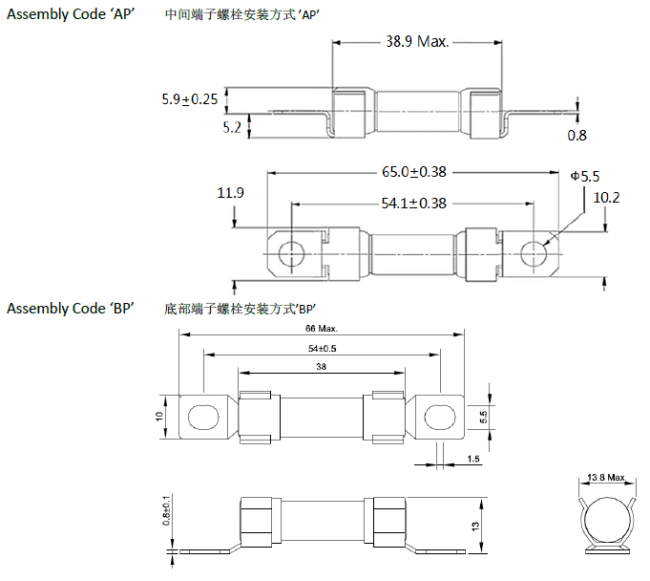

‘AP’ means center terminal bolt installation
‘BP’ means bottom terminal bolt installation

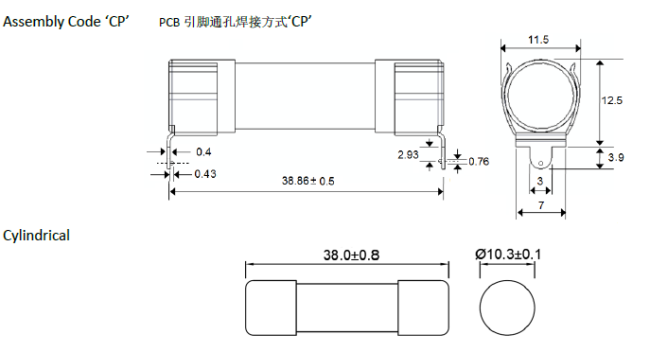

‘CP’ means PCB through hole installation
No suffix mean cylindrical without terminals
