Photovoltaic Dc High Voltage Fuse 1500 Volt 10x85mm 30 KA Rated Breaking Capacity
Photovoltaic Dc Fuse 10*85 Mm 1500 Volts Fuse High Voltage Protection
1500 VDC, 10x85mm PV fuse link
Rated Current: 2~15A
Rated Breaking Capacity: 30 kA
Time Constant: ≤1ms
Special design with silver plated caps for high-power
PV applications
| Part No./Rating | Rated Voltage DC | Rated Current | Breaking Capacity | Energy Integrals I2t (A2S | Power Loss (W) | |||
| Pre-Arcing at 1500V/30kA | Total at 1500V/30kA | |||||||
| 0.7In | 0.8In | 1.0In | ||||||
| AC10XLgPV2 | 1500V | 2A | 30kA | 3.5 | 10 | 1.1 | 1.45 | 2.6 |
| AC10XLgPV4 | 4A | 15 | 50 | 1.2 | 1.55 | 2.8 | ||
| AC10XLgPV5 | 5A | 22 | 75 | 1.4 | 1.8 | 3.2 | ||
| AC10XLgPV10 | 10A | 300 | 1100 | 1.7 | 2.3 | 4.2 | ||
| AC10XLgPV12 | 12A | 20 | 60 | 1.8 | 2.4 | 4.2 | ||
| AC10XLgPV15 | 15A | 35 | 95 | 2 | 2.8 | 5 | ||

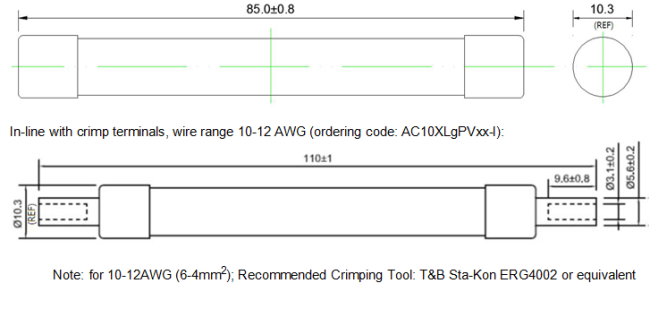

DIMENSIONS (mm)
Q: Are you trading company or manufacturer ?
A: We are a fuse and fuse holder factory.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. Or it is 5-10 days if the goods are not in stock, according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% in advance, T/T.
Please tell me:
What product specifications do you need? when you ask for a quotation.I will give you the most competitive price per as your requirements. And we have many types for you to choose.
P.S.:If you can't find any products to meet your requirements. welcome to send us the details drawings so that we can provide us our professional & best service to you.
