600V AC 6.3A High Voltage Fuse 5mm X 20mm Fuse Quick Break Halogen Free
600Vac, 5x20mm, Fast Acting, Ceramic Tube Fuses
Fast Acting, high breaking capacity

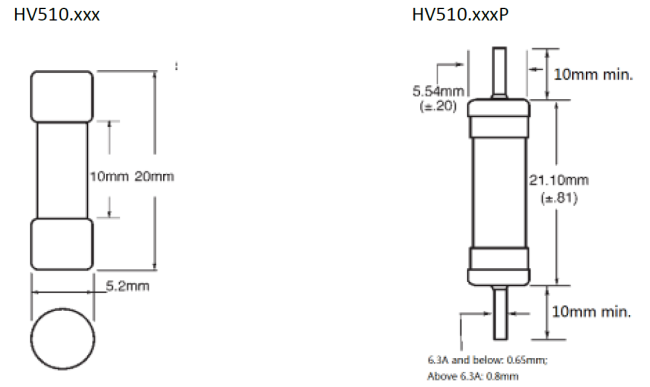

5x20mm physical size
Ceramic tube, Silver plated copper cap construction
Designed to UL248-1
Lead Free and Halogen free material
| Electrical Characteristics | |||
| Rated Current | 1.0In | 2.0In | 4.0In |
| 200mA – 600mA | 4 hour min. | / | 120 sec max. |
| 1A–20A | 4 hour min. | 120 sec max. | / |
| Specification | ||||||
| Part No. | Rated Voltage |
Rated Current | Breaking Capacity (A) | Typical Cold. Resistance (mOhms) | Typical Voltage Drop (mV) | Typical Pre-Arcing I2t (A2Sec) |
| AC | AC | |||||
| HV510.0.2 | 600V | 200mA | 1000A | 1750 | 333 | 0.032 |
| HV510.0.25 | 250mA | 878 | 217 | 0.053 | ||
| HV510.0.4 | 400mA | 663 | 278 | 0.172 | ||
| HV510.0.5 | 500mA | 382 | 190 | 0.287 | ||
| HV510.0.6 | 600mA | 360 | 234 | 0.396 | ||
| HV510.1 | 1A | 230 | 280 | 0.28 | ||
| HV510.1.6 | 1.6A | 200A | 148 | 310 | 2.56 | |
| HV510.2 | 2A | 100 | 248 | 1.68 | ||
| HV510.2.5 | 2.5A | 90 | 360 | 1.48 | ||
| HV510.3.15 | 3.15A | 49 | 215 | 4.86 | ||
| HV510.4 | 4A | 38 | 220 | 8 | ||
| HV510.5 | 5A | 29 | 200 | 16 | ||
| HV510.6 | 6A | 24 | 150 | 30 | ||
| HV510.6.3 | 6.3A | 19 | 162 | 48 | ||
| HV510.8 | 8A | 14 | 149 | 64 | ||
| HV510.10 | 10A | 12 | 166 | 90 | ||
| HV510.12 | 12A | 9.5 | 160 | 130 | ||
| HV510.15 | 15A | 7.3 | 165 | 225 | ||
| HV510.16 | 16A | 6.8 | 164 | 256 | ||
| HV510.20 | 20A | 5 | 150 | 520 | ||
* DC Cold Resistance are measured at <10% of rated current in ambient temperature of 25℃
* Typical Pre-arcing I2t are measured at 10In Current
