240v Series PTC Resettable Fuses For Electronics Load Medical Equipment
240v series Self recovery fuse reset PTC electronic element protection
◆ Radial Leaded Devices
◆ Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements
◆ Voltage:120Vac and 240Vac
◆ Security and fire alarm systems
◆ Motor, Blower
◆ Electronics load
◆ Modems and DSL
◆ Medical equipment
◆ POS
◆ GPS receicer
◆ Industrial control
| P/N | IH, | IT, | Vmax, | Imax, | Vmax, | Time to Trip | Pd typ, | R min, | R max, | R1 max, | |
| (A) | (A) | (Vac) | (A) | (V) | (A) | (Sec.) | (W) | (Ω) | (Ω) | (Ω) | |
| TRM005 | 0.05 | 0.12 | 240 | 1 | 265 | 0.25 | 10 | 0.7 | 18.5 | 34.4 | 65 |
| TRM008 | 0.08 | 0.19 | 240 | 1.2 | 265 | 0.4 | 10 | 0.8 | 7.4 | 13.8 | 26 |
| TRM012 | 0.12 | 0.3 | 240 | 1.2 | 265 | 0.6 | 15 | 1 | 3 | 5.58 | 12 |
| TRM016 | 0.16 | 0.37 | 240 | 2 | 265 | 0.8 | 15 | 1.4 | 2.5 | 4.65 | 7.8 |
| TRM025 | 0.25 | 0.56 | 240 | 3.5 | 265 | 1.25 | 18.5 | 1.5 | 1.3 | 2.42 | 3.8 |
| TRM033 | 0.33 | 0.74 | 240 | 4.5 | 265 | 1.65 | 18.5 | 1.7 | 0.83 | 1.8 | 2.8 |
| TRM040 | 0.4 | 0.9 | 240 | 5.5 | 265 | 2 | 24 | 2 | 0.6 | 1.12 | 1.9 |
| TRM055 | 0.55 | 1.25 | 240 | 7 | 265 | 2.75 | 26 | 3.4 | 0.45 | 0.84 | 1.45 |
| TRM075 | 0.75 | 1.5 | 240 | 7.5 | 265 | 3.75 | 18 | 2.6 | 0.32 | 0.62 | 0.99 |
| TRM100 | 1 | 2 | 240 | 10 | 265 | 5 | 21 | 2.9 | 0.22 | 0.42 | 0.65 |
| TRM125 | 1.25 | 2.5 | 240 | 12.5 | 265 | 6.25 | 23 | 3.3 | 0.16 | 0.35 | 0.59 |
| TRM150 | 1.5 | 3 | 240 | 15 | 265 | 7.5 | 25 | 3.5 | 0.12 | 0.28 | 0.47 |
| TRM200 | 2 | 4 | 240 | 20 | 265 | 10 | 28 | 4.5 | 0.09 | 0.16 | 0.27 |

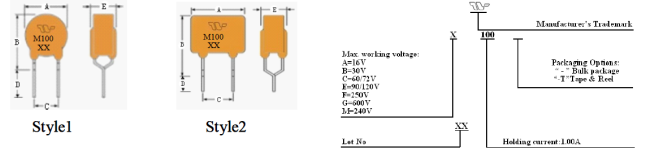

| P/N | A | B | C | D | E | Physical Characteristics | ||
| Max. | Max. | Typ. | Min. | Max. | Style | Lead Φ mm | Material | |
| TRM005 | 9.7 | 14.5 | 5.1 | 7.6 | 3.8 | 1 | 0.6 | CP |
| TRM008 | 9.7 | 14.5 | 5.1 | 7.6 | 3.8 | 1 | 0.6 | CP |
| TRM012 | 9.7 | 14.5 | 5.1 | 7.6 | 3.8 | 1 | 0.6 | CP |
| TRM016 | 9.9 | 15 | 5.1 | 7.6 | 3.8 | 1 | 0.6 | CP |
| TRM025 | 11 | 17.4 | 5.1 | 7.6 | 3.8 | 1 | 0.6 | CP |
| TRM033 | 11.4 | 16.5 | 5.1 | 7.6 | 3.8 | 1 | 0.6 | CP |
| TRM040 | 13.2 | 18.4 | 5.1 | 7.6 | 3.8 | 2 | 0.6 | CP |
| TRM055 | 14 | 19.5 | 5.1 | 7.6 | 3.8 | 2 | 0.6 | CP |
| TRM075 | 15.4 | 23.9 | 5.1 | 7.6 | 4 | 3 | 0.81 | CU |
| TRM100 | 18.7 | 24.4 | 5.1 | 7.6 | 4 | 3 | 0.81 | CU |
| TRM125 | 19.2 | 27.4 | 10.2 | 7.6 | 4 | 3 | 0.81 | CU |
| TRM150 | 20.8 | 29.8 | 10.2 | 7.6 | 4 | 3 | 0.81 | CU |
| TRM200 | 24.9 | 33.8 | 10.2 | 7.6 | 4 | 3 | 0.81 | CU |
Q: Are you trading company or manufacturer ?
A: We are a fuse and fuse holder factory.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. Or it is 5-10 days if the goods are not in stock, according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% in advance, T/T.
Please tell me:
What product specifications do you need? when you ask for a quotation.I will give you the most competitive price per as your requirements. And we have many types for you to choose.
P.S.:If you can't find any products to meet your requirements. welcome to send us the details drawings so that we can provide us our professional & best service to you.
